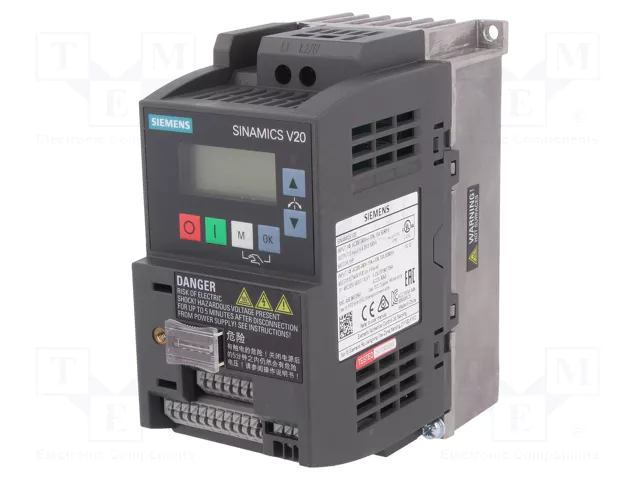

SIEMENS 6SL3210-5BB17-5UV1 SINAMICS V20, 1AC 230V 0,75kW UNFILTERED
SINAMICS V20 200-240V 1AC -10/+10% 47-63Hz rated power 0.75 kW with 150% overload for 60 sec. unfiltered I/O: 4 DI, 2 DO,2 AI, 1 AQ fieldbus: USS/MODBUS RTU with built-in BOP protection: IP20/ UL open size: QB 68x142x128 (WxHxD)
This variable speed drive is part of the SINAMICS V20 range and is designed for basic motor control in industrial and commercial applications. It operates from a single-phase 200 to 240 V AC supply and provides a three-phase output at 230 V for motor operation. The drive delivers rated power of 0.75 kW with consistent current performance across low and high overload conditions. It supports USS and Modbus RTU communication protocols for integration into control systems. With integrated digital and analog I/O, convection cooling, and IP20 protection, it provides a straightforward solution for variable speed motor control.
SIEMENS 6SL3210-5BB17-5UV1 SINAMICS V20, 1AC 230V 0,75kW UNFILTERED
- Product type: Variable speed drive
- Series: SINAMICS V20
- Input phases: 1 AC
- Input voltage: 200 to 240 V AC minus 15 percent plus 10 percent
- Line frequency: 47 to 63 Hz
- Output phases: 3 AC
- Rated output voltage: 230 V IEC, 240 V NEC
- Rated power (LO): 0.75 kW
- Rated power (HO): 0.75 kW
- Rated current (LO): 4.20 A
- Rated current (HO): 4.20 A
- Rated current (IN): 4.20 A
- Pulse frequency: 8 kHz
- Output frequency: 0 to 550 Hz
- Overload capability LO: 110 percent rated output current for 60 s in 300 s cycle
- Overload capability HO: 150 percent rated output current for 60 s in 300 s cycle
- Power factor: 0.72
- Efficiency: 0.98
- Filter class: Unfiltered
- Integrated braking chopper: No
- Communication: USS, Modbus RTU
- Digital inputs: 4
- Digital outputs: 1 relay changeover contact, 1 transistor
- Analog inputs: 2 (can be used as additional digital input)
- Analog outputs: 1
- Cooling: Convection cooling
- Ambient temperature (operation): -10 to +60 °C
- Ambient temperature (storage): -40 to +70 °C
- Relative humidity: 95 percent maximum
- Motor cable length: 25 m shielded, 50 m unshielded
- Degree of protection: IP20
- Frame size: FSAB
- Mounting position: Wall mounting / side-by-side mounting
- Dimensions (H x W x D): 142 mm x 68 mm x 127.8 mm
- Weight: 0.90 kg
