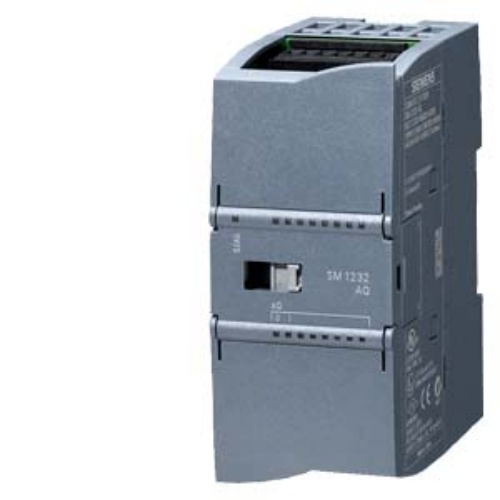

Siemens SIMATIC S7-1200 Analog Output SM 1232 Module (6ES7232-4HD32-0XB0)

Core Specifications at a Glance
Before exploring its integration benefits, here is the high-utility technical baseline that makes the 6ES7232-4HD32-0XB0 an industry benchmark:
  • Product Model: SIMATIC S7-1200 Analog Output SM 1232
  • Article Number (MLFB): 6ES7232-4HD32-0XB0
  • Number of Channels: 4 Analog Outputs.
  • Output Signal Ranges:
    • Voltage: ±10 V or 0 to 10 V.
    • Current: 0 to 20 mA or 4 to 20 mA.

  • Resolution: 14-bit resolution (voltage) / 13-bit resolution (current) for ultra-fine dynamic adjustment.
  • Dimensions: Slim 45mm (W) x 100mm (H) x 75mm (D) footprint.
  • System Connectivity: Plugs seamlessly onto the right side of any standard S7-1200 CPU via the integrated slide-in bus connector.
Category:
Ultimate Guide to Siemens 6ES7232-4HD32-0XB0: The Precision SIMATIC S7-1200 4-Channel Analog Output Module for Advanced Process Control
In modern industrial automation, precise data gathering is only half the battle; executing precise physical responses is what defines a truly efficient system. For international B2B procurement managers, panel builders, and automation distributors looking to expand the control capabilities of their machinery, the Siemens SIMATIC S7-1200 SM 1232 Analog Output Module (6ES7232-4HD32-0XB0) is an essential component.
As a dedicated signal module within the globally trusted Siemens SIMATIC S7-1200 PLC family, this module empowers your central processing unit to drive proportional valves, variable frequency drives (VFDs), actuators, and regulatory instrumentation with world-class accuracy.
Key Operational Advantages
1. Flexible 4-Channel Configuration (Voltage and Current)
Engineering projects frequently dictate different control signals across various field machinery. Rather than purchasing separate, single-purpose hardware modules, the SM 1232 6ES7232-4HD32-0XB0 offers ultimate versatility. Each of its 4 channels can be independently configured via software to source standard voltage ranges (0-10V / ±10V) or drive current loops (4-20mA / 0-20mA). This software-defined adaptability lowers procurement complexity and streamlines inventory.
2. High Resolution for Ultra-Precise Execution
For critical operations like chemical dosing, micro-positioning, or delicate pressure regulation, jagged step changes in output can ruin product batches or strain mechanical parts. With its 14-bit/13-bit high-resolution output engine, this module delivers smooth, continuous, and near-linear signal transitions. This guarantees that your proportional valves and modulation motors respond perfectly to the CPU’s exact PID calculation loops.
3. Compact, Space-Optimized Design
Control cabinet footprint reduction is a priority for competitive panel builders. The SM 1232 module delivers 4 premium analog outputs while measuring just 45mm in width. It features a rugged, industrial-grade plastic casing with removable terminal blocks that simplify pre-wiring, installation, and field diagnostics.
4. Native TIA Portal Diagnostics and System Safety
Configuration of the module is entirely integrated into the Siemens TIA Portal environment. The module features onboard diagnostic LEDs and comprehensive software alerts capable of detecting short-circuits at voltage outputs or wire breaks in current loops. If a wire is severed on the factory floor, the module immediately flags the system, allowing operators to intervene before safety compromises occur.
Global Compliance and Universal Applications
For international trade distributors and B2B engineering firms, strict regulatory compliance prevents customs bottlenecks and project rejection. The 6ES7232-4HD32-0XB0 satisfies all primary global industrial benchmarks:
  • CE / UL / cULus (North American and European Safety Standards)
  • FM Class I Div 2 (Hazardous Location Ratings for oil & gas environments)
  • Marine Approvals (ABS, DNV GL, BV, Lloyd’s Register for maritime and offshore applications)
  • C-TICK / RCM (Australian and Oceanic Compliance)

Typical Deployment Scenarios:
  • Speed Regulation: Providing precise frequency reference signals to external VFDs in multi-pump or fan arrays.
  • Flow & Valve Modulation: Continuous positioning of proportional control valves in food, beverage, and pharmaceutical blending lines.
  • Heating Control: Feeding analog inputs of solid-state relays or power controllers to regulate heating elements in industrial ovens.
  • Remote Signal Mirroring: Retransmitting internal PLC values out to physical panel meters or secondary analog recording equipment.

Why Source the Siemens 6ES7232-4HD32-0XB0 From Us?
As an experienced international exporter of industrial automation hardware, we specialize in delivering authentic Siemens components to clients across the globe:
  • 100% Guaranteed Factory-Original: Every module is sourced through official networks and ships in factory-sealed boxes with intact serial tracking numbers.
  • Aggressive B2B Wholesale Margins: We leverage volume purchase agreements to provide highly competitive pricing to regional distributors, wholesalers, and system integrators.
  • Fast and Secure Global Delivery: We maintain robust stock levels of essential S7-1200 expansion modules to guarantee rapid dispatch via premium air and sea freight carriers.

If you want to upgrade your system’s process control accuracy or add a highly requested model to your wholesale stock, we are ready to assist. Please specify your required unit quantity and target country/port below, and our commercial sales team will generate a custom B2B quotation within 24 hours.
