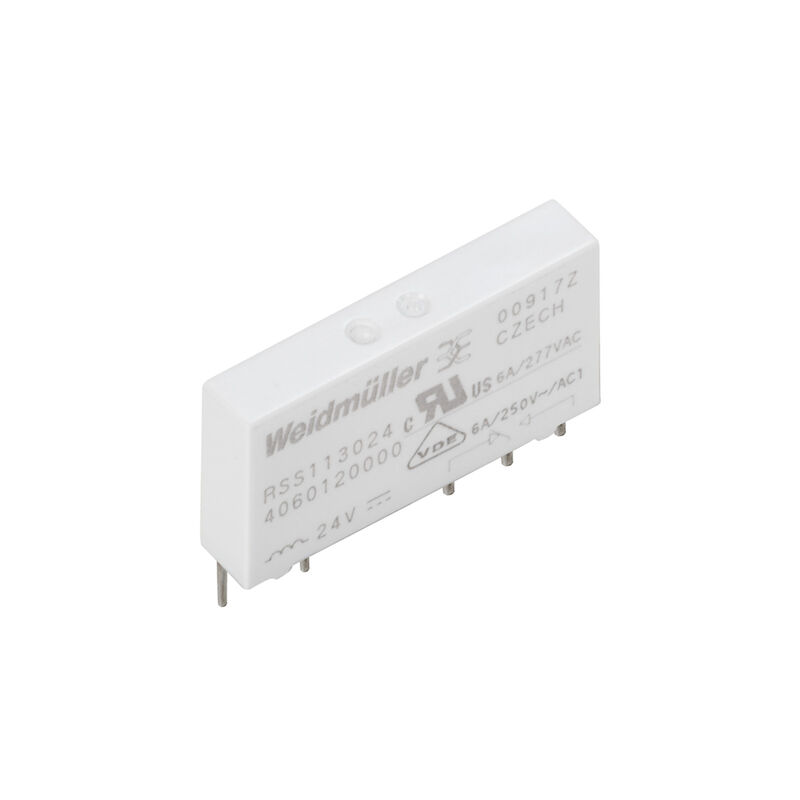

Weidmuller RSS113024 TERMSERIES, Relay

Category:



Weidmuller RSS113024 TERMSERIES, Relay, Number of contacts: 1, CO contact AgNi, Rated control voltage: 24 V DC, Continuous current: 6 A, Plug-in connection, Test button available: No Item No. 4060120000



Version
TERMSERIES, Relay, Number of contacts: 1, CO contact AgNi, Rated control voltage: 24 V DC, Continuous current: 6 A, Plug-in connection, Test button available: No
Order No. \ 4060120000
Type \ RSS113024
GTIN (EAN)  \ 4032248252251
Qty.\20 items
Dimensions and weights
Depth\15 mm
Depth (inches)\0.591 inch
Height  \28 mm
Height (inches)  \1.102 inch
Width   \5 mm
Width (inches)   \0.197 inch
Net weight  \6 g
Temperatures
Storage temperatur\-40 °C…85 °C
Ambient temperature\-40 °C…85 °C
Humidity\5…85 % rel. humidity, no condensation
Environmental Product Compliance
RoHS Compliance Status
Compliant without exemption
REACH SVHC
No SVHC above 0.1 wt%
Rated data UL
Certificate No. (cURus)\E223474
Control side
Rated control voltage\24 V DC
Rated current DC\7 mA
Power rating\170 mW
Coil resistance\3388 Ω ± 10 %
Status indicator\No
Load side
Rated switching voltage\250 V AC
Switching frequency (rated load), max.\0.1 Hz
Switching voltage (AC), max.\250 V
Switching voltage (DC), max.\250 V
Min. switching power
1 mA @ 24 V
10 mA @ 10 V
100 mA @ 5 V
Inrush current\20 A / 20 ms
AC switching capacity (resistive), max.\1500 VA
DC switching capacity (resistive), max.  \144 W @ 24 V
Switch-on delay   <8 ms
Switch-off delay  <4 ms
Contact type   \1 CO contact (AgNi)
Mechanical service life   \5 x 106 switching cycles
General data
Test button available   \No
Mechanical switch position indicator available   \No
Colour  \white
UL 94 flammability rating   \V-0
Insulation coordination
Clearance and creepage distances for control side – load side   \≥ 6 mm
Dielectric strength for control side – load side     \4 kVeff / 1 Min.
Dielectric strength of open contact   \1 kVeff / 1 min
Protection degree   \IP67
