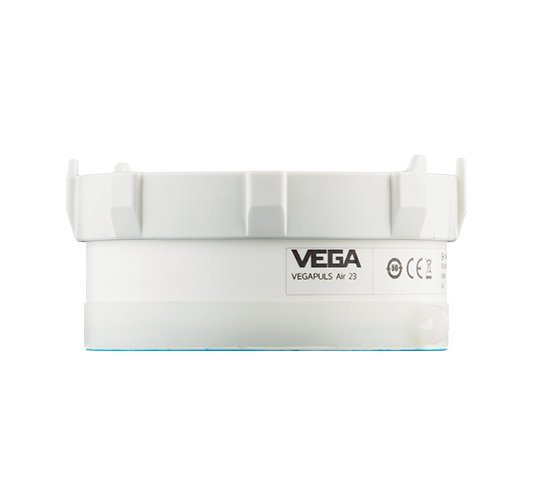

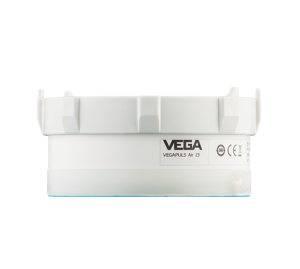

VEGAPULS Air 23
Autarkic, continuous level measurement in plastic vessels
Autarkic sensor with measured value transmission by radio technology
Application area
NB-IoT/CAT-M1, LoRa, measuring range up to 3m, accuracy +/-5mm
VEGAPULS Air 23 is the ideal sensor for level measurement in IBCs and plastic vessels. The instrument measures through the closed vessel ceiling and is suitable for nearly all liquids and bulk solids. VEGAPULS Air 23 is quickly mounted by simple and reliable adhesive, ceiling or tension belt mounting. Since no additional power supply is necessary, the autarkic sensor offers a particularly economical solution. The sensor housing with high protection rating IP69 enables maintenance-free continuous operation even outdoors or when cleaning the vessel.
Your benefit
- Exact measuring results independent of medium, process and ambient conditions
- Maintenance-free operation due to non-contact 80 GHz radar technology
- Easy installation thanks to autarkic voltage supply and radio technology
Technical specifications
Measuring range – Distance
- 3 m [Meter – Foot]
Process temperature
- -20 … 60 °C [°C – °F]
Accuracy
- ± 5 mm / ± 0.2″
Frequency
- 80 GHz
Beam angle
- 8°
Threaded connection
- via adhesive, ceiling or tension belt mounting
Housing material
- Plastic / PVDF
Protection rating
- IP69
Output
- NB-IoT (LTE-Cat-NB1), LTE-M (LTECAT-M1), LoRa WAN
Ambient temperature
- -20 … 60 °C
