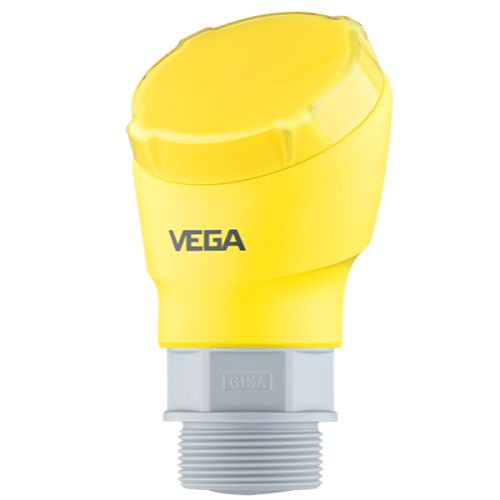

VEGAPULS 21
Compact radar sensor for continuous level measurement
For standard measuring tasks, plastic housing IP66/IP67, Type 4X
Application area
4 … 20 mA/HART output, measuring range up to 20 m, accuracy ±2 mm, Ex approval optional
VEGAPULS 21 is the ideal sensor for non-contact level measurement of liquids and bulk solids in simple applications. It is particularly suitable for use in water treatment, storage tanks with acids, lyes and additives in all industrial areas, or for measuring levels in plastic tanks from the outside through the tank wall. In bulk solids the sensors are used in small bulk solids silos or open containers.
Your benefit
- Exact measurement results independent of medium properties and process conditions
- Maintenance-free operation due to non-contact 80 GHz radar technology
- High accuracy and reliability
Technical specifications
Measuring range – Distance
- 20 m [Meter – Foot]
Process temperature
- -40 … 80 °C [°C – °F]
Process pressure
- -1 … 3 bar [Bar – kPa – psi]
Accuracy
- ± 2 mm
Frequency
- 80 GHz
Beam angle
- 8°
Materials, wetted parts
- PVDF
Threaded connection
- G1½, 1½ NPT, R1½
Seal material
- FKM
Housing material
- Plastic
Protection rating
- IP66/IP67, Type 4X
Output
- 4 … 20 mA/HART
Ambient temperature
- -40 … 70 °C
