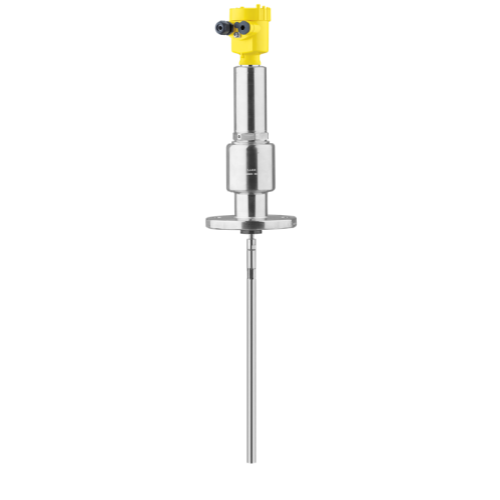

VEGAFLEX 86
TDR sensor for continuous level and interface measurement of liquids
For the most extreme process conditions
| Measuring unit for lengths | Metre / Millimetre | |
| Scope | A | Europe |
| Approval | X | for Ex-free area (CE,UKCA) |
| Version / Material | H | Exchangeable rod (ø16mm) / 316L |
| Probe | mounted | |
| Length (from seal surface) | 2300 mm | |
| Process fitting / Material | TN | Thread G1½ PN400, DIN3852-A / 316L |
| Seal / Second line of defense / Process temperature | 1 | Ceramic graphite / with / -196…+280°C |
| Electronics | H | Two-wire 4 … 20 mA/HART |
| Supplementary electronics | X | without |
| Overvoltage protection of the supply cable | without | |
| Housing / Protection | A | Aluminium single chamber / IP66/IP68 (0.2bar) |
| Cable entry / Connection | D | M20x1.5 / Blind plug |
| Display/Adjustment module PLICSCOM | A | mounted |
| Certificates | X | No |
| Operating instructions | DE – German | |
| Number of operating instructions | 1 | |
| Type label / Measurement loop identification label | of stainless steel / without | |
| Customer-specific adjustment | No | |
| Linearization | No | |
| Address setting | No | |
| Application-specific settings | No | |
| Min. process pressure in bar | -1 | |
| Max. process pressure in bar | 400 | |
| Customs tariff number (HS code) | 90261029 | |
| Software version | Current version |
