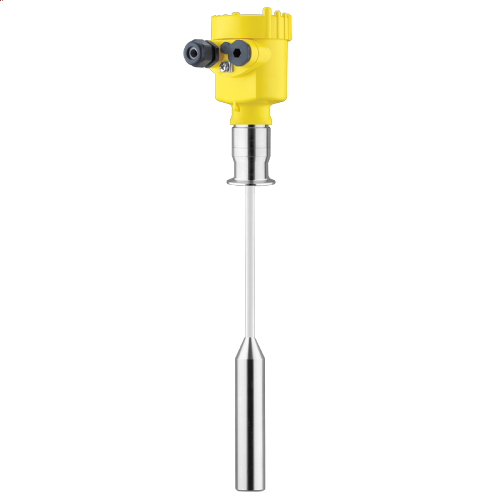

VEGACAL 66 Capacitive cable probe for continuous level measurement
Cable probe, fully PTFE insulated
Application area
For use in non-abrasive liquids and bulk solids. The cable probe is fully insulated. A full/empty adjustment is necessary for setup.
The VEGACAL 66 is a level sensor for use in non-abrasive liquids and bulk solids. The cable probe is fully insulated. The proven mechanical construction offers high functional safety.
Your benefit
- Savings through simple mounting and setup
- Long lifetime and low maintenance requirement through robust mechanical construction
- Maximum utilization of the vessel because measurement over the complete probe length
Technical specifications
Measuring range – Distance
- 32 m [Meter – Foot]
Process temperature
- -50 … 150 °C [°C – °F]
Process pressure
- -1 … 40 bar [Bar – kPa – psi]
Version
- PTFE insulated cable ø 8 mm with gravity weight
- PTFE-insulated cable ø 8 mm with gravity weight and screening tube
Materials, wetted parts
- PTFE
- 316L
- Steel C22.8
Threaded connection
- ≥ G1, ≥ 1 NPT
Flange connection
- ≥ DN50, ≥ 2″
Seal material
- no media contact
Housing material
- Plastic
- Aluminium
- Stainless steel (precision casting)
- Stainless steel (electropolished)
Protection rating
- IP66/IP68 (0,2 bar)
- IP66/IP67
- IP66/IP68 (1 bar)
Output
- Profibus PA
- Foundation Fieldbus
- Two-wire: 4 … 20 mA/HART
Ambient temperature
- -40 … 80 °C
