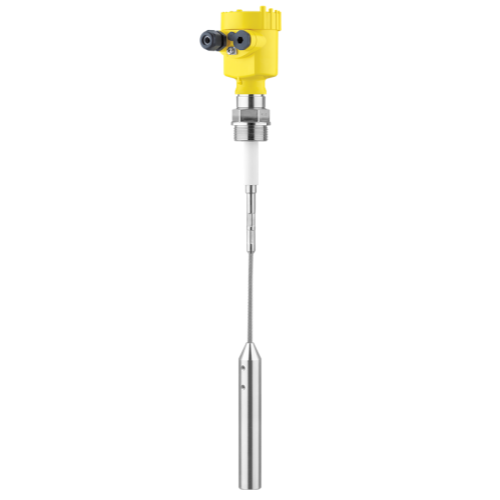

VEGACAL 65 Capacitive cable probe for continuous level measurement
Cable probe, partly PTFE insulated
Application area
For measurement of bulk solids and can also be used in non-conductive liquids such as oil. A full/empty adjustment is necessary for setup.
The VEGACAL 65 is a level sensor for use in all industries. The partly insulated probe is ideal for the measurement of bulk solids and can be also used in non-conductive liquids such as for example oil. The proven mechanical construction offers high functional safety.
Your benefit
- High flexibility through shortenable probe
- Long lifetime and low maintenance requirement through robust mechanical construction
- Maximum utilization of the vessel because measurement over the complete probe length
Technical specifications
Measuring range – Distance
- 32 m [Meter – Foot]
Process temperature
- -50 … 200 °C [°C – °F]
Process pressure
- -1 … 64 bar [Bar – kPa – psi]
Version
- Cable ø 6 mm with screening tube without weight
- Cable ø 6 mm with screening tube and gravity weight
- Cable ø 6 mm with crimping sleeve
- Cable ø 6 mm with crimping sleeve and screening tube
- Cable ø 6 mm with gravity weight
- Cable ø 6 mm without weight
- Cable ø 8 mm with abrasion protection without weight
- Cable ø 8 mm with abrasion protection and gravity weight
- Cable ø 8 mm with gravity weight
Materials, wetted parts
- PTFE
- 316L
- Alloy 400 (2.4360)
- PA
- PEEK
- Steel C22.8
Threaded connection
- ≥ G1, ≥ 1 NPT
Flange connection
- ≥ DN50, ≥ 2″
Seal material
- no media contact
Housing material
- Plastic
- Aluminium
- Stainless steel (precision casting)
- Stainless steel (electropolished)
Protection rating
- IP66/IP68 (0,2 bar)
- IP66/IP67
- IP66/IP68 (1 bar)
Output
- Profibus PA
- Foundation Fieldbus
- Two-wire: 4 … 20 mA/HART
Ambient temperature
- -40 … 80 °C
