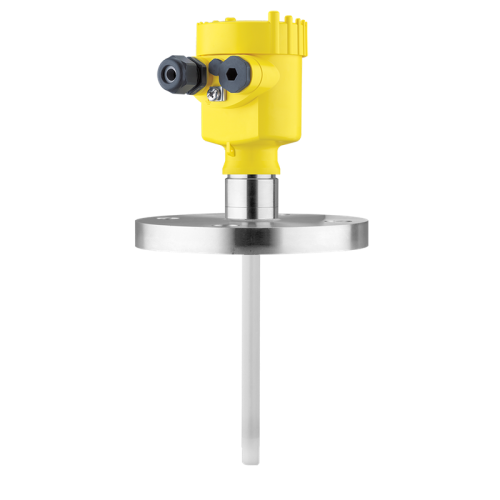

VEGACAL 64 Capacitive rod probe for continuous level measurement of adhesive products
Rod probe, fully FEP insulated
Application area
For conductive and non-conductive liquids. The rod measuring probe is fully insulated and especially suitable for viscous and adhesive products. A full/empty adjustment is necessary for setup.
The VEGACAL 64 is a level sensor for conductive and non-conductive liquids. The rod electrode is fully insulated and is particularly suitable for viscous and adhesive products.
Your benefit
- Reduced number of cleaning cycles through measurement insensitive to buildup
- Long lifetime and low maintenance requirement through robust mechanical construction
- Maximum utilization of the vessel because measurement over the complete probe length
Technical specifications
Measuring range – Distance
- 4 m [Meter – Foot]
Process temperature
- -50 … 150 °C [°C – °F]
Process pressure
- -1 … 64 bar [Bar – kPa – psi]
Version
- FEP insulation
Materials, wetted parts
- 316L
- FEP
- Steel C22.8
Threaded connection
- ≥ G¾, ≥ ¾ NPT
Flange connection
- ≥ DN25, ≥ 1″
Seal material
- no media contact
Housing material
- Plastic
- Aluminium
- Stainless steel (precision casting)
- Stainless steel (electropolished)
Protection rating
- IP66/IP68 (0,2 bar)
- IP66/IP67
- IP66/IP68 (1 bar)
Output
- Profibus PA
- Foundation Fieldbus
- Two-wire: 4 … 20 mA/HART
Ambient temperature
- -40 … 80 °C
