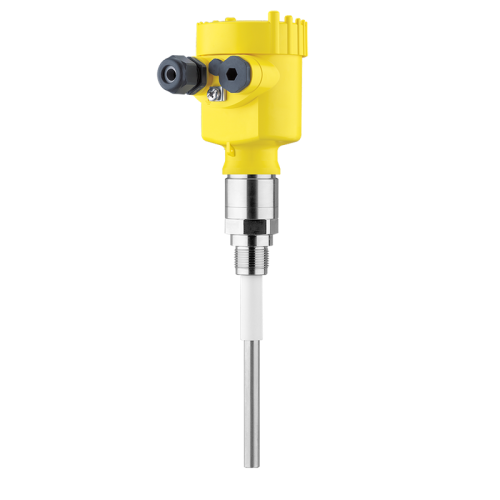

VEGACAL 62 Capacitive rod probe for continuous level measurement
Rod probe, partly PTFE insulated
Application area
For measurement of bulk solids and non-conductive liquids such as oil. A full/empty adjustment is necessary for setup.
The VEGACAL 62 is a level sensor for continuous level measurement in all industries. The partly insulated probe is designed for measurement of bulk solids and can be also used in non-conductive liquids such as e.g. oil. The proven construction offers high functional safety.
Your benefit
- High flexibility through shortenable probe
- Long lifetime and low maintenance requirement through robust mechanical construction
- Maximum utilization of the vessel because measurement over the complete probe length
Technical specifications
Measuring range – Distance
- 6 m [Meter – Foot]
Process temperature
- -50 … 200 °C [°C – °F]
Process pressure
- -1 … 64 bar [Bar – kPa – psi]
Version
- with screening tube PN1
- with concentric tube
- Standard
Materials, wetted parts
- PTFE
- 316L
- Alloy 400 (2.4360)
- PEEK
- Steel C22.8
Threaded connection
- ≥ G½, ≥ ½ NPT
Flange connection
- ≥ DN25, ≥ 1″
Seal material
- no media contact
Housing material
- Plastic
- Aluminium
- Stainless steel (precision casting)
- Stainless steel (electropolished)
Protection rating
- IP66/IP68 (0,2 bar)
- IP66/IP67
- IP66/IP68 (1 bar)
Output
- Profibus PA
- Foundation Fieldbus
- Two-wire: 4 … 20 mA/HART
Ambient temperature
- -40 … 80 °C
