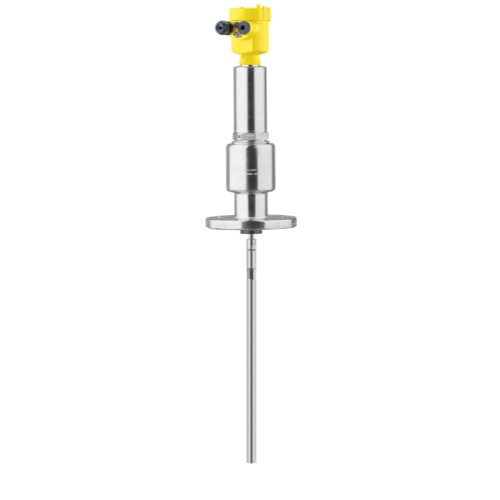

VEGAFLEX 86
TDR sensor for continuous level and interface measurement of liquids
For the most extreme process conditions
Application area
Cable, rod or coaxial sensor. Its robust, mechanical design and the second process seal, the Second Line of Defense, protect the sensor for demanding measurement tasks. Process temperature: -196 … 450° C; process pressure: -1 … 400 bar
The VEGAFLEX 86 level sensor measures maintenance-free all liquids under extreme pressure and temperature conditions. Even in applications with buildup, foam generation and condensation, the sensor delivers precise and reliable measured values. In saturated steam applications, a special reference probe ensures a density-independent measurement. The VEGAFLEX 86 offers an economical level and interface measurement for your application.
Your benefit
- The guided adjustment enables a simple, time-saving and reliable setup
- Shortenable probes offer a simple standardisation and highest flexibility in the planning
- Comprehensive diagnostic possibilities ensure a maintenance-free operation and hence a high plant availability
Technical specifications
Measuring range – Distance
- 75 m [Meter – Foot]
Process temperature
- -196 … 450 °C [°C – °F]
Process pressure
- -1 … 400 bar [Bar – kPa – psi]
Accuracy
- ± 2 mm
Version
- Coax version ø 21.3 mm with multiple hole
- Coax version ø 42.2 mm with single hole
- Coax version ø 42.2 mm with multiple hole
- Exchangeable rod ø 16 mm
- Exchangeable cable ø 2 mm with gravity weight
- Exchangeable cable ø 4 mm with gravity weight
- Exchangeable cable ø 2 mm with centering weight
- Exchangeable cable ø 4 mm with centering weight
Materials, wetted parts
- 316L
- Alloy C22 (2.4602)
- 316
Threaded connection
- ≥ G¾, ≥ ¾ NPT
Flange connection
- ≥ DN25, ≥ 1″
Seal material
- FFKM
- graphit and ceramic
Housing material
- Plastic
- Aluminium
- Stainless steel (precision casting)
- Stainless steel (electropolished)
Protection rating
- IP66/IP68 (0,2 bar)
- IP66/IP67
- IP66/IP68 (1 bar)
Output
- Profibus PA
- Foundation Fieldbus
- Two-wire: 4 … 20 mA/HART
- Modbus
- Four-wire: 4 … 20 mA/HART
Ambient temperature
- -40 … 80 °C
