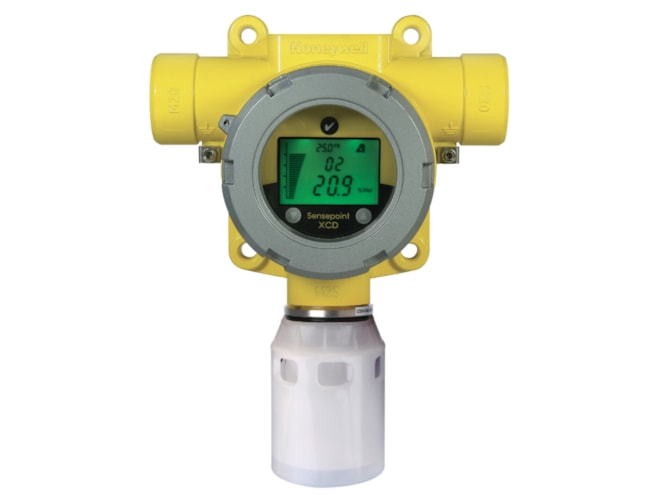

SPXCDALMHX – Honeywell Sensepoint XCD Gas Detector
The Honeywell SPXCDALMHX transmitter is an explosion-proof, fixed gas detector designed for continuous monitoring of Hydrogen Sulfide (H2S) in hazardous industrial areas. Engineered with Honeywell’s patented Surecell electrochemical sensor technology, this ATEX and IECEx certified transmitter delivers real-time H2S concentration readings (0-50 ppm) through an intuitive tri-color backlit LCD. Widely deployed across offshore oil rigs, petrochemical refineries, wastewater treatment plants, and gas processing facilities throughout Dubai, Riyadh, Singapore, and Jakarta, it features a rugged LM25 aluminum alloy housing for reliable operation in extreme environments.
Key Features & Product Highlights
-
Tri-Color Backlit Display: Intuitive LCD clearly shows operational status from a distance (Green = Normal, Yellow = Fault, Red = Alarm).
-
Non-Intrusive Calibration: One-man calibration and configuration via magnetic switches without opening the enclosure, ensuring hot-work permits are unnecessary.
-
Surecell Electrochemical Sensor: Delivers fast, accurate H2S detection with exceptional poison resistance and long operational life.
-
Integrated Relays & Outputs: Features industry-standard 4-20mA analog output along with two programmable alarm relays and one fault relay.
-
Explosion-Proof Housing: Robust LM25 painted aluminum enclosure rated for IP66, designed for harsh onshore and offshore environments.
-
Global Certifications: ATEX, IECEx, and Asian approvals ensure compliance with stringent international hazardous area standards.
Comprehensive Technical Specifications
| Parameter Category | Specification Details |
| Product Model | Honeywell SPXCDALMHX (Sensepoint XCD Series) |
| Target Gas Type | Hydrogen Sulfide (H2S) |
| Measurement Range | 0 to 50 ppm |
| Sensor Type | Electrochemical (Surecell) |
| Output Signal | 4-20mA (Sink or Source) |
| Built-In Relays | 3 x 5A @ 250V AC (2 Alarm, 1 Fault) |
| Display | Backlit LCD (Numeric, Bar Graph, and Icon display) |
| Enclosure Material | Painted LM25 Aluminum Alloy |
| Cable Entries | 2 x M20 |
| Ingress Protection | IP66 (Dust-tight and water jet resistant) |
| Operating Temperature | -40 °C to 65 °C (-40 °F to 149 °F) |
| Dimensions & Weight | ~164 mm x 201 mm x 99 mm | ~1.7 kg |
Honeywell Sensepoint XCD Part Number Logic
Understanding the ordering code helps safety managers cross-reference exact specifications for site requirements:
Order Code Pattern:
SPXCD+[Approval]+[Housing/Entry]+[Gas Type]
-
SPXCD: Sensepoint XCD Fixed Gas Transmitter
-
A: ATEX / IECEx / Asian Approvals
-
LM: LM25 Aluminum Alloy Housing with M20 Entries
-
HX: H2S (Hydrogen Sulfide) Sensor
Primary Industrial Applications
The Honeywell SPXCDALMHX transmitter provides critical toxic gas monitoring across major sectors:
-
Oil & Gas / Petrochemicals (Middle East): Wellhead monitoring, refinery desulfurization units, and offshore platform living quarters.
-
Water & Wastewater Treatment (Southeast Asia): Sludge processing areas, digesters, and sewage pump stations where H2S accumulates.
-
Power Generation: Biogas facilities and geothermal power plant turbine decks.
-
Chemical Manufacturing: Storage tank farms, loading bays, and enclosed process reactor areas.
Why Source From Us? Our Global Trade Advantages
As an established international supplier of Honeywell Analytics and industrial gas detection equipment, we partner with EPC contractors, safety managers, and regional instrumentation distributors across the Middle East and Southeast Asia.
Procuring the Honeywell SPXCDALMHX transmitter through our supply chain offers distinct operational benefits:
-
100% Genuine & Factory Sealed: Guaranteed authentic Honeywell transmitters complete with original factory packaging and calibration certificates.
-
Competitive B2B Wholesale Pricing: Optimized direct supply channels allow us to offer tier-one export pricing to strengthen your project bids.
-
Ready Stock & Fast International Freight: High-demand ATEX gas detectors are maintained in stock for immediate express shipping via DHL, FedEx, UPS, or air cargo to Dubai, Abu Dhabi, Singapore, Jakarta, and Ho Chi Minh City.
-
Dedicated Multi-Lingual Support: Rapid inquiry turnaround with formal technical quotations issued within 1 to 2 hours, supported by product specialists.
