Radar measurement
Time-of-Flight

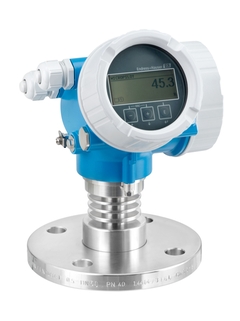

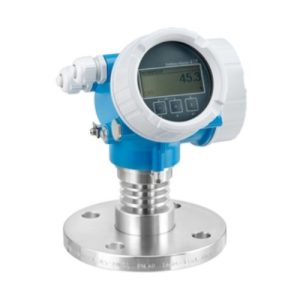

Micropilot FMR52
-
Measuring principle
Level radar
-
Characteristic / Application
Premium device for continuous non-contact level measurement, in which aggressive media are used as well as for highest hygiene requirements (ASME BPE, USP Class VI);
Flush mounted, fully PTFE filled horn antenna -
Specialities
Heartbeat Technology,
SIL 2 according to IEC 61508,
Bluetooth® commissioning,
Operation and maintenance SmartBlue App,
Safety and reliability with Multi-Echo Tracking,
HistoROM,
RFID TAG for easy identification -
Supply / Communication
2-wire (HART / PROFIBUS PA/ FOUNDATION Fieldbus)
4-wire (HART)
Bluetooth® wireless technology and App (optional) -
Frequency
K-band (~26 GHz)
-
Accuracy
+/- 2 mm (0.08 in)
-
Ambient temperature
-50…+80 °C
(-58…+176 °F) -
Process temperature
-196…+200 °C
(-321…+392 °F) -
Process pressure / max. overpressure limit
Vacuum…25 bar
(Vacuum…363 psi) -
Main wetted parts
PTFE
-
Process connection
Flange:
DN50…DN150
ASME 2″…6″
JIS 10K -
Process connection hygienic
Tri-Clamp ISO2852
DIN11851 -
Max. measurement distance
Standard: 40 m (131 ft)
With advanced dynamics: 60 m (197 ft) -
Communication
4…20 mA HART
PROFIBUS PA
FOUNDATION Fieldbus
Bluetooth® wireless technology -
Certificates / Approvals
ATEX, FM, CSA C/US, IEC Ex, JPN Ex, INMETRO, NEPSI, KC, EAC, UK Ex
-
Safety approvals
Overfill protection WHG
SIL -
Design approvals
EN 10204-3.1
ASME B31.3
AD2000 -
Hygienic approvals
3A, EHEDG
CoC ASME-BPE -
Marine approval
GL/ ABS/ LR/ BV/ DNV
-
Options
Display,
Customized parameterization,
Remote operation via SmartBlue App using Bluetooth®,
Gas-tight feed through,
PWIS free -
Application limits
Maximum measuring range is dependent on the tank form and/or application
Ammoniacal gas phase:
FMR54 in stilling well
Strong build-up formation:
FMR54 with air purge
Custody transfer measurement:
FMR5xx
