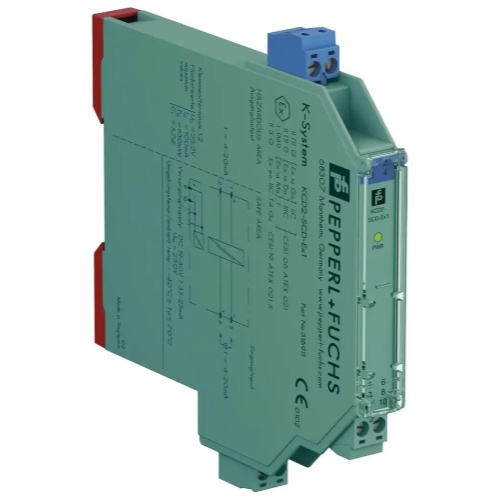

Ultimate Guide to Pepperl+Fuchs KCD2-SCD-Ex1: The High-Performance Intrinsic Safety Isolated Barrier for Hazardous Area Process Control
In heavy industries like oil & gas, chemical refining, pharmaceuticals, and power generation, precision and safety must coexist. When designing or sourcing for process control panels, protecting electrical loops in explosive atmospheres is non-negotiable. For B2B procurement managers, electrical system integrators, and global switchgear wholesalers, the Pepperl+Fuchs KCD2-SCD-Ex1 SMART Current Driver represents the absolute gold standard in intrinsic safety (IS) isolated barriers.
As a critical node in Pepperl+Fuchs’ premium K-System portfolio, this 1-channel current isolated driver bridges the gap between non-hazardous control room DCS/PLC networks and field-mounted equipment operating in hazardous zones.
Key Operational Advantages
1. Bi-Directional HART Transparency for Smart Diagnostics
The defining characteristic of the KCD2-SCD-Ex1 is its ability to seamlessly transfer superimposed digital signals alongside standard 4-20mA analog loops. This unlocks the power of SMART I/P converters, electrical control valves, and advanced positioners. Technicians can execute real-time calibrations, track error metrics, and review valve status parameters remotely via HART-IP, without entering hazardous locations.
2. Advanced Intelligent Fault & Lead Breakage Monitoring
Downtime in a chemical or processing line is highly expensive. The KCD2-SCD-Ex1 features built-in lead breakage monitoring. If a field wire breaks or a short circuit happens on the hazardous side, the driver instantly increases loop impedance on the control side. This allows the host PLC or Distributed Control System (DCS) to immediately capture the alarm and pinpoint the exact source of the loop fault before safety thresholds are breached.
3. Ultra-Slim 12.5mm Housing for Massive Panel Density
Cabinet real estate is premium currency for modern system builders. Unlike traditional 20mm or 40mm isolation blocks, the KCD2-SCD-Ex1 packs its DC/DC galvanic isolation engine into a slim 12.5 mm width housing. By snapping these modules onto a standard 35mm DIN rail or utilizing the proprietary Pepperl+Fuchs Power Rail system, panel builders can increase loop density, shrink cabinet volumes, and reduce overall fabrication costs.
4. Uncompromised Intrinsic Safety Compliance (SIL 2)
Engineered for ultimate reliability, this current driver carries a systematic capability rating of SIL 2 (SC 3). It provides a galvanic barrier capable of preventing dangerous energy levels from entering flammable gas, vapor, or dust zones, protecting field infrastructure under a broad ambient temperature profile ranging from -20°C up to 60°C.
Global Regulatory Compliance and Applications
To guarantee trouble-free customs clearance and effortless incorporation into global B2B engineering project bids, the Pepperl+Fuchs KCD2-SCD-Ex1 holds primary global certifications:
- ATEX / IECEx (European and International Explosion Protection Certification)
- UL / cUL / FM (North American Hazardous Area Standards Compliance)
- SIL 2 Functional Safety certified according to IEC/EN 61508 standards.
Typical Deployment Fields:
- Driving pneumatic positioners and critical I/P converters on offshore oil rigs.
- Proportional flow-valve regulation inside chemical tank farms and blending grids.
- Controlling safety-critical shutoff actuators on pharmaceutical mixing vessels.
- Driving process control loop indicators and digital field displays in combustible coal or milling plants.
Why Source the Pepperl+Fuchs KCD2-SCD-Ex1 From Us?
As an established international exporter of premier industrial automation and process safety hardware, we guarantee a secure supply chain:
- 100% Brand-New Original Factory Stock: Every unit ships in original factory boxes with intact manufacturer labels and traceable serial codes.
- Highly Aggressive B2B Pricing: Our extensive distributor network allows us to provide great price margins for wholesale traders and large integration projects.
- Ruggedized Export Packaging & Rapid Logistics: Every shipment is wrapped in collision-resistant anti-static layers to ensure damage-free worldwide transit via express air or cargo ocean freight.
If you want to secure the intrinsic safety loops of your upcoming automated panels or add a top-tier通货 model to your wholesale warehouse inventory, we are ready to assist. Please specify your required unit quantity and target delivery destination port below, and our engineering sales team will issue a formal B2B commercial quote within 24 hours.
