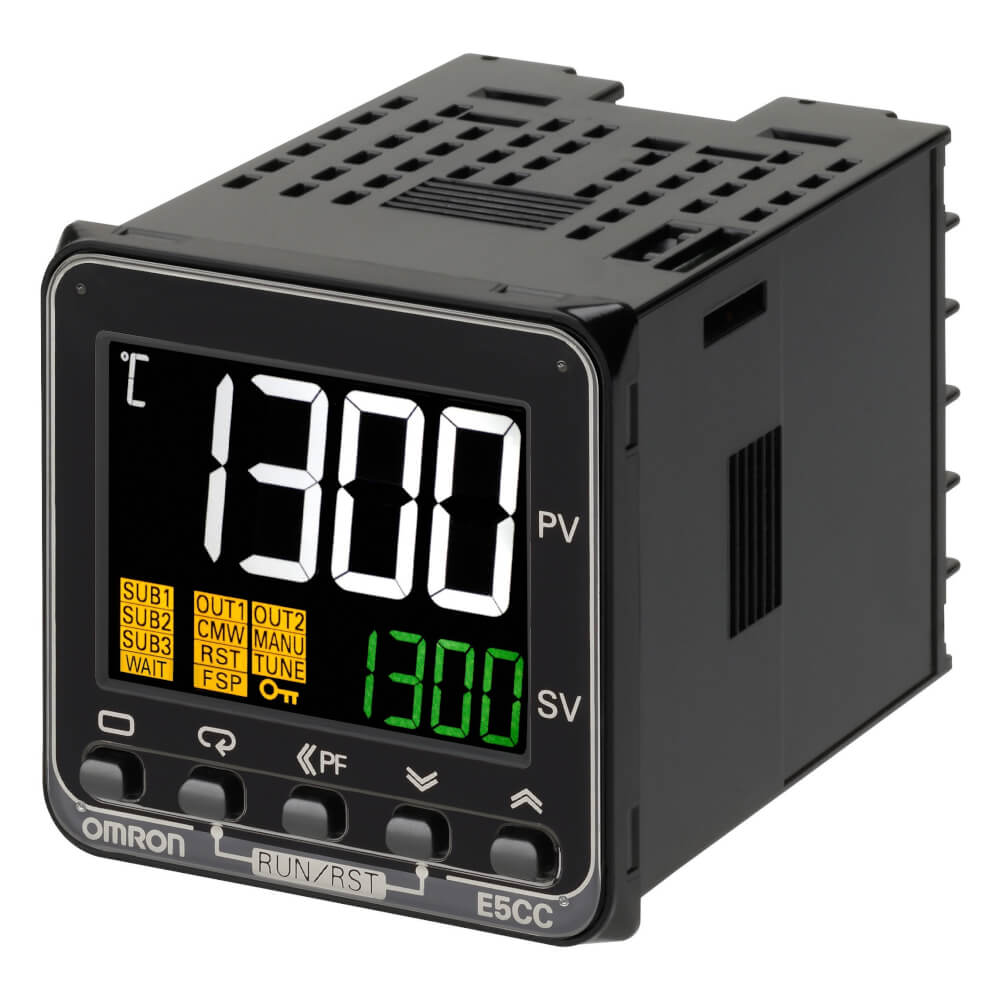

Omron E5CC-RX3A5M-000 Digital Temperature Controller (48x48mm, Relay Output)

Category:

Omron E5CC-RX3A5M-000 Digital Temperature Controller (48x48mm, Relay Output)

Executive Overview

The Omron E5CC-RX3A5M-000 controller is a premium $48 \times 48\text{ mm}$ (1/16 DIN) digital temperature controller from Omron’s flagship E5CC series. Designed for high-precision thermal control in plastic machinery, packaging equipment, food processing, and industrial furnaces, it features a high-contrast white PV display that ensures optimal readability even from long distances or wide viewing angles.

Built for seamless integration into modern control cabinets across Dubai, Riyadh, Singapore, Jakarta, and Ho Chi Minh City, this unit offers ultra-fast $50\text{ ms}$ sampling cycles, advanced PID auto-tuning, and robust reliability under demanding operational conditions.

Key Features & Product Highlights

  • High-Contrast White LCD Display: Large $15.2\text{ mm}$ white PV characters provide exceptional clarity in both dim lighting and bright industrial settings.

  • Ultra-Fast 50 ms Sampling Cycle: Delivers rapid response and precise closed-loop temperature control for sensitive process lines.

  • Flexible Sensor Input: Supports multiple thermocouple types (K, J, T, E, R, S, B, etc.), platinum resistance thermometers (Pt100, JPt100), and analog voltage/current inputs.

  • 3 Auxiliary Alarm Outputs: Comes standard with 3 relay alarm outputs for flexible system protection and status signaling.

  • Toolless Quick-Setting (CX-Thermo): Configurable via PC software (CX-Thermo) without needing a separate power supply, significantly reducing setup time for panel builders.

  • Compact Body Depth: $60\text{ mm}$ depth behind the panel allows for installation in shallow control enclosures and space-constrained cabinets.

Comprehensive Technical Specifications
Parameter Category Specification Details
Product Model Omron E5CC-RX3A5M-000 (E5CC Series)
Front Panel Dimensions $48 \times 48\text{ mm}$ (1/16 DIN, IP66 Front Face)
Power Supply Voltage 100 to 240 VAC, 50/60 Hz
Control Output Type Relay Output (SPST-NO, 250 VAC, 3A resistive load)
Auxiliary Outputs 3 Relay Alarm Outputs (SPST-NO, 250 VAC, 2A)
Input Sensor Types

Thermocouples: K, J, T, E, L, U, N, R, S, B, W, PL II



RTD: Pt100, JPt100



Analog: 4–20 mA, 0–20 mA, 1–5 V, 0–5 V, 0–10 V
Sampling Period 50 ms
Control Methods ON/OFF Control or 2-PID Control (with Auto-Tuning)
Indication Accuracy

Thermocouple: $\pm0.3\%$ of PV or $\pm1\text{ }^\circ\text{C}$ (whichever is greater)



RTD: $\pm0.2\%$ of PV or $\pm0.8\text{ }^\circ\text{C}$
Display Type 11-segment digital display (PV: White, SV: Green)
Terminal Connection Screw terminal block (M3.5)
Operating Temperature -10 °C to 55 °C (14 °F to 131 °F)
Weight ~120 g
Omron E5CC Part Number & Ordering Code Logic

Understanding the model suffix logic simplifies cross-referencing and specification selection when managing panel bills of materials (BOM):

Ordering Code Breakdown: E5CC + -[Output] + [Alarm] + [Power] + [Terminal] + -[Option]

1. Model Breakdown: E5CC-RX3A5M-000

  • E5CC: $48 \times 48\text{ mm}$ Digital Temperature Controller Base Unit

  • R: Control Output 1 = Relay Output

  • X: Control Output 2 = None

  • 3: Auxiliary Outputs = 3 Relay Alarm Outputs

  • A: Power Supply = 100 to 240 VAC

  • 5: Terminal Type = Screw Terminal Block (with cover)

  • M: Input Type = Multi-Input (Thermocouple / RTD / Analog)

  • 000: Options = Standard Model (No HB alarm / No RS-485 communication)

2. Full Output & Model Options Quick Matrix

To help system integrators select alternative variants in the E5CC family, refer to the following code selection guide:

Control Output Options (Position 1):

  • E5CC-RX… : Relay Output (Standard) (Featured Model)

  • E5CC-QX… : Voltage Output (for driving SSR)

  • E5CC-CX… : Linear Current Output (4–20 mA / 0–20 mA)

Power Supply Code (Position 3):

  • A : 100 to 240 VAC

  • D : 24 VAC / 12 to 24 VDC

Common E5CC Variants in Stock:

  • E5CC-QX3A5M-000 (Voltage Output for SSR, 100–240 VAC, 3 Alarms)

  • E5CC-CX3A5M-000 (Current Output 4–20mA, 100–240 VAC, 3 Alarms)

  • E5CC-RX3D5M-000 (Relay Output, 24 VDC / VAC, 3 Alarms)

  • E5CC-QX3A5M-008 (SSR Output + RS-485 Modbus Communication)

Typical Industrial Applications

The Omron E5CC-RX3A5M-000 controller is a reliable choice across major manufacturing sectors:

  1. Packaging Machinery (Southeast Asia): Precise heat-sealing bar temperature control for pouch sealers and flow wrappers.

  2. Plastics & Extrusion (Middle East): Mold temperature control units (TCU), injection blow molding, and hopper dryers.

  3. Food Processing & Ovens: Commercial baking equipment, sterilization retorts, and thermal oil cookers.

  4. HVAC & Environmental Chambers: Constant temperature testing cabinets, industrial chillers, and drying kilns.

Why Source From Us? Our Global Trade Advantages

As a dedicated exporter of industrial automation and process control instrumentation, we partner with system integrators, OEMs, and regional distributors across the Middle East and Southeast Asia.

When ordering the Omron E5CC-RX3A5M-000 controller from our team, you receive distinct supply chain benefits:

  • 100% Guaranteed Original Products: All units are brand-new, direct from factory sources with full quality assurance and serial number integrity.

  • Competitive Bulk Pricing: Wholesale export rates structured to help you win local project tenders and improve profit margins.

  • Fast Logistics & Stock Readiness: We maintain ready stock of popular Omron models for immediate dispatch via DHL, FedEx, UPS, or sea cargo to Dubai, Abu Dhabi, Singapore, Jakarta, and Ho Chi Minh City.

  • Dedicated B2B Support: Experienced multi-lingual sales specialists provide rapid quotations within 1 to 2 hours and ongoing support for wiring diagrams and parameter setup.
