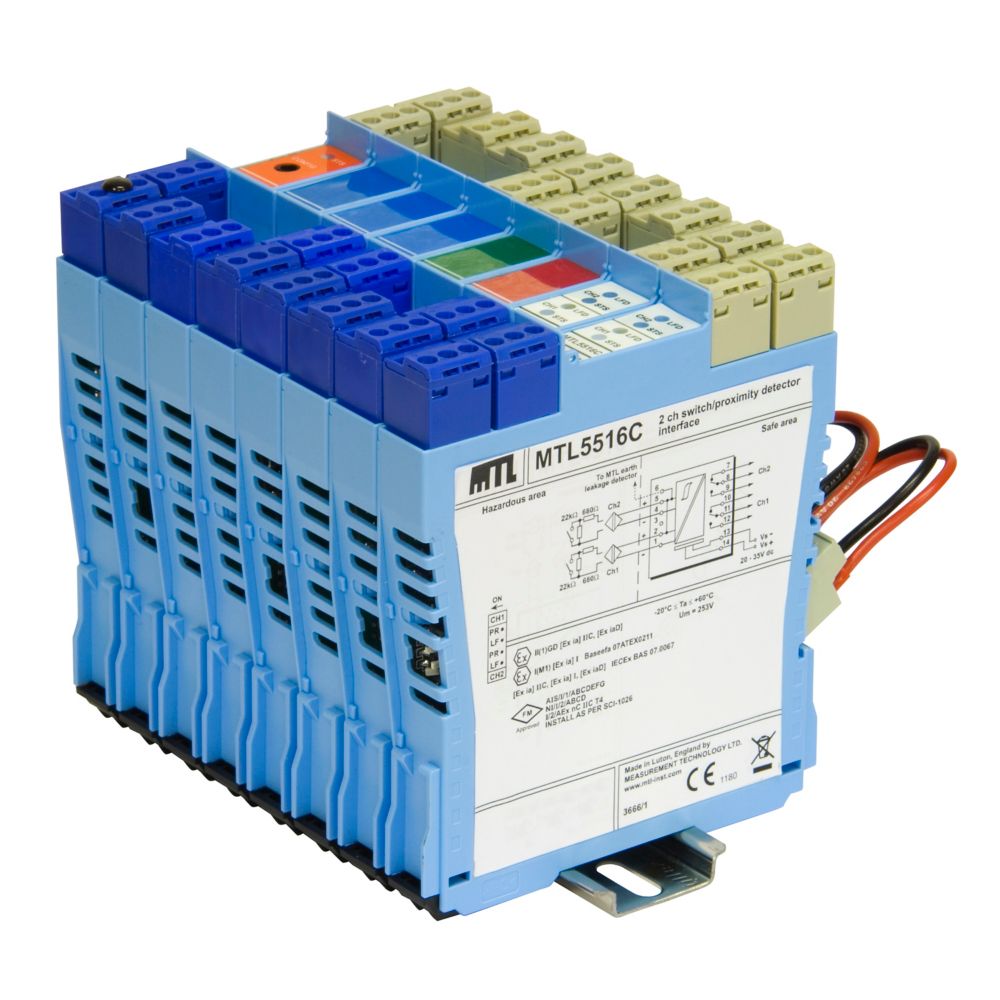

| SKU | MTL5532 | |
| descriptionLabel | Eaton Crouse-Hinds series MTL5500 pulse isolator, 1 channel, 24mA, 20-35 Vdc, 1.35W max. at 24V dissipation, Output ON if input >2.1mA (<2k ohms), Output OFF if input <1.2mA (>10k ohms), LED: Green = power, Yellow = status, Red = LFD | |
| General specifications | ||
| Product Name | Eaton Crouse-Hinds series MTL5500 pulse isolator | |
| Catalog Number | MTL5532 | |
| EAN | 5056891309994 | |
| Product Length/Depth | 109.8 mm | |
| Product Height | 118.8 mm | |
| Product Width | 15.8 mm | |
| Product Weight | 150 g | |
| Product Type | Pulse isolator | |
| Certifications and compliances | ||
| Area classification | Hazardous/Classified Locations | |
| Standards type | IEC IECEx/ATEX | |
| IECEx/ATEX hazardous rating | Zone 0 | |
| EMC | EN61326 | |
| Product specifications | ||
| Signal Type | Pulse and vibration | |
| Number of Channels | 1, fully floating | |
| Mounting Method | T-section 35mm DIN rail | |
| Power Dissipation | 1.75W maximum at 35V 1.35W maximum at 24V | |
| Hysteresis | 0.2mA (650Ω) | |
| Response Time | 60ms | |
| Transfer Accuracy | Better than 20µA | |
| Temperature Drift | <1.0µA/°C | |
| Ripple | <50µA peak-to-peak | |
| Configuration | A personal computer running MTL PCS45 software with a PCL45USB serial interface | |
| Switching Frequency | 0-10 kHz (for analogue output) 0-50 kHz (pulse output mode) | |
| Galvanic Isolation | 250V rms between safe-area circuits and power supply | |
| Type | Pulse and 4/20mA current outputs | |
| Current | ||
| Current | 24 mA | |
| Under/Over Range | 0-22mA | |
| Load Resistance | 0-450Ω at 20mA | |
| Minimum Load Resistance | >1MΩ | |
| Voltage | ||
| Power Supply | 20-35 Vdc | |
| Input | ||
| Input/Output Characteristics | Output OFF if input <1.2mA (>10kΩ) Output ON if input >2.1mA (<2kΩ) | |
| Input Impedance | >10kΩ | |
| Output | ||
| Output Signal Range | 4-20mA | |
| Connection | ||
| Electrical Connection | Crimp ferrules | |
| Terminal Capacity | Accepts conductors of up to 2.5mm2 stranded or single-core | |
| LED indication | ||
| LED Indication | Yes | |
| LED Color – Power | Green | |
| LED Color – Status | Yellow | |
| LED Color – LFD | Red | |
| Environmental | ||
| Minimum Ambient Operating Temperature | -20 °C | |
| Maximum Ambient Operating Temperature | 60 °C | |
| Minimum Ambient Storage Temperature | -40 °C | |
| Maximum Ambient Storage Temperature | 80 °C | |
| Humidity | 5-95% relative humidity |
MTL
MTL MTL5500 pulse isolator MTL5532
Eaton Crouse-Hinds series MTL5500 pulse isolator, 1 channel, 24mA, 20-35 Vdc, 1.35W max. at 24V dissipation, Output ON if input >2.1mA (<2k ohms), Output OFF if input <1.2mA (>10k ohms), LED: Green = power, Yellow = status, Red = LFD
