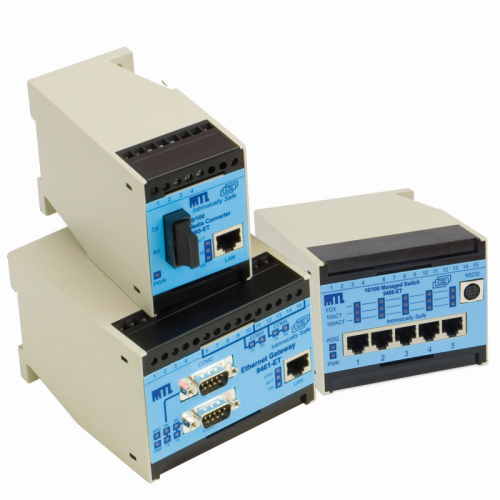

MTL 9460-ET intrinsically safe ethernet products
The Crouse-Hinds series MTL 9460-ET product range provides cost-effective Intrinsically Safe (IS) Ethernet equipment that can be installed and maintained easily in hazardous areas. The intrinsically safe hazardous area certification permits the components to be mounted in a Zone 1, or Division 1 hazardous area with connectivity into Zone 0.
In Process Automation it is also preferable to use a single cable to provide both power and communications to the end device. The 9460-ET range can deliver Intrinsically Safe Power over Ethernet (PoEx™) with a single Cat 5e or Cat 6 cable, allowing live connection and disconnection of the end device in Zone 0 and 1 hazardous areas.
The MTL 9460-ET range includes:
- Ethernet Gateway (9461-ET)
- Copper to Fibre Optic Media Converter (9465-ET)
- Ethernet Switch (9466-ET)
- Ethernet Isolator (9468-ET)
| Part number | Description | Preferred alternative | PoEx+ application alternative |
| 9461-ET | IS Serial to Ethernet Gateway | 9471-ETG | 9471-ET |
| 9465-ET-M-SC | IS Media Converter Multimode | 9475-ETG | 9475-ET |
| 9465-ET-S-SC | IS Media Converter Single-mode | 9475-ETG | 9475-ET |
| 9465-ET-M-ST | IS Media Converter Multimode | 9475-ETG | 9475-ET |
| 9465-ETA-S-SC | IS Media Converter Single-mode (Australia) | 9475-ETG | 9475-ET |
| 9466-ET | IS Ethernet Managed Switch | 9476-ETG; 9476-ET2G | 9476-ET2G |
| 9466-ETA | IS Ethernet Managed Switch (Australia) | 9476-ETG | 9476-ET2G |
| 9468-ET | IS Ethernet Isolator | 9478-ETG; 9478-ETXG* | 9478-ET; 9478-ETX* |
