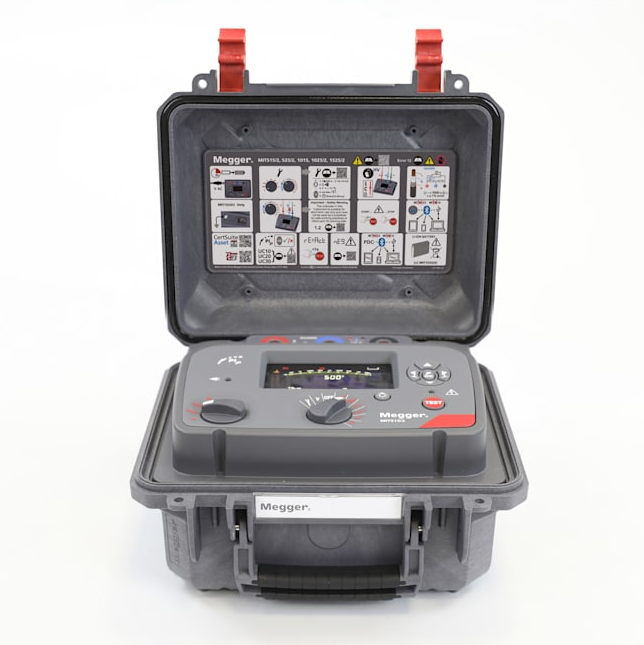

Megger MIT515-2-US – 5kV Insulation Resistance Tester

Megger’s 5 kV, 10 kV, and 15 kV DC insulation testers set the industry standard for insulation resistance testing. Designed for diagnostic testing and maintenance of high-voltage electrical equipment, these rugged, portable instruments offer unparalleled performance, safety and reliability for OEMs, industrial companies, electrical contractors and utility providers.

Whether conducting routine maintenance or advanced diagnostics in the most demanding applications, Megger’s insulation testers deliver the precision and dependability required for confident decision-making and effective asset management.

Essential range: reliable performance for routine testing

The Essential range consists of the MIT515 and the MIT1015. These are 5 kV and 15 kV products that provide the most common tests: standard insulation resistance measurement, dielectric absorption (DAR) and polarization index (PI). Essential instruments have no onboard data storage and a maximum burn/charge current of 3 mA. They are ideal for simple go/no-go testing but are not limited to this.

Advanced range: versatile solution for comprehensive diagnostics

The Advanced range has three instruments: MIT525 (5 kV), MIT1025 (10 kV) and MIT1525 (15 kV). These differ only in their maximum test voltage. As well as the tests provided by the Essential instrument, these offer dielectric discharge (DD), step voltage (SV), ramp voltage and, when used in conjunction with PowerDB software, polarization/depolarization (PDC) tests. They have extensive onboard data storage and can transfer test results to PowerDB and CertSuite Asset via a wired USB connection. Maximum burn/charge current is 3 mA. Advanced instruments are the right choice for users who need more versatility than is provided by Essential products, but not the special performance enhancements of the Expert range.

Expert range: comprehensive insights for demanding environments

Featuring instruments designed specifically for users with the most demanding requirements, the Expert range includes the S1-568 (5 kV), S1-1068 (10 kV) and the (S1-1568). These instruments differ only in their maximum test voltage. Expert instruments provide all the facilities of the Advanced products but incorporate enhanced software filtering and noise rejection of 8 mA to give reliable results even in extreme electrical environments up to 1,000 kV. Expert instruments have a maximum charge/burn current of 6 mA and support Bluetooth wireless connectivity.

See the table below for a feature comparison of the three ranges.
