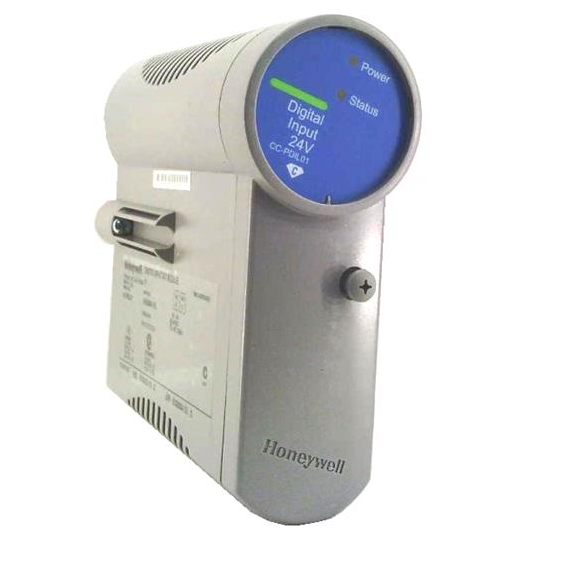

Honeywell CC-PDIL01 Experion PKS Series 8 Digital Input Module
Executive Overview
The Honeywell CC-PDIL01 module is a high-density 32-channel digital input card from Honeywell’s flagship Experion® Process Knowledge System (PKS) Series 8 I/O family. Designed to interface field discrete devices—such as limit switches, pushbuttons, relay contacts, and valve position switches—with C300 controllers, this module delivers ultra-reliable 24V DC sequence and status monitoring for continuous industrial process operations.
Widely deployed across oil refineries, gas processing plants, chemical facilities, and power stations throughout Dubai, Abu Dhabi, Riyadh, Singapore, Jakarta, and Ho Chi Minh City, the CC-PDIL01 features factory conformal coating, open-circuit/short-circuit field diagnostics, and high-speed signal sampling.
Key Features & Product Highlights
32 High-Density Input Channels: Accommodates up to 32 discrete 24V DC field inputs per module, optimizing panel space and rack footprint.
Advanced Field Diagnostics: Supports line monitoring for broken wire (open circuit) and short-circuit fault detection on field contact loops.
Conformally Coated Protection: Standard G3-grade conformal coating protects internal electronics against corrosive atmospheric gases, moisture, and dust contaminants.
GalvanicOptical Isolation: Optical isolation protects sensitive backplane electronics and C300 controllers from high-voltage field surges and ground loops.
Hot-Swappable Design: Supports quick, toolless replacement under power without disrupting adjacent I/O modules or controller operation.
Seamless IOTA Mounting: Plugs directly onto Honeywell Series 8 Input Output Terminal Assemblies (IOTA) such as 8C-TDIL01 or CC-TDIL01 for organized, vibration-proof field wiring.
Comprehensive Technical Specifications
| Parameter Category | Specification Details |
| Product Model | Honeywell CC-PDIL01 (Series 8 Family) |
| Module Type | Digital Input Module (24V DC, 32 Channels) |
| System Compatibility | Honeywell Experion PKS (C300 Controller Systems) |
| Number of Channels | 32 Channels (Sink / Source Configuration) |
| Nominal Input Voltage | 24V DC (Operating Range: 18V DC to 30V DC) |
| Input ON State Current | $\ge 2.5\text{ mA}$ @ 24V DC |
| Input OFF State Current | $\le 1.0\text{ mA}$ |
| Filter / Response Time | Configurable software filter (1 ms to 20 ms) |
| Module Power Dissipation | ~3.2 Watts (Full Load) |
| Isolation Voltage | 1500V AC field-to-logic / backplane isolation |
| Operating Temperature | 0°C to 60°C (32°F to 140°F) |
| Storage Temperature | -40°C to 85°C (-40°F to 185°F) |
| Relative Humidity | 5% to 95% RH (Non-condensing) |
| Conformal Coating | ISA S71.04 Class G3 Harsh Environment Rating |
| Weight | ~0.35 kg |
Honeywell Series 8 Digital Input Part Number & System Logic
Understanding the model prefix and hardware designation within Honeywell Series 8 hardware simplifies DCS system engineering, spare parts cross-referencing, and procurement:
Order Code Pattern: CC / 8C + -[Function Code]
CC-: Conformally Coated Electronic Module Component
8C-: Series 8 Complete Hardware Assembly / Terminal Base (IOTA) Component
PDIL01: Digital Input Sequence Module (24V DC, Generation 01)
Full Series 8 Digital & Analog I/O Selection Matrix
To assist DCS system integrators, EPC contractors, and maintenance engineers in selecting matching components, refer to the following selection guide:
Digital Input & Output Modules / Assemblies:
Honeywell CC-PDIL01: 24V DC Digital Input Module (32 Channels) (Featured Model)
Honeywell 8C-PDIL01: Complete 24V DC Digital Input Pack (Includes CC-PDIL01 Module + IOTA Base)
Honeywell CC-PDI110: 110V AC Digital Input Module (16 Channels)
Honeywell CC-PDOB01: 24V DC Digital Output Module (32 Channels, Bus-Powered)
Honeywell CC-SDOF01: Fail-Safe Digital Output Module (Safety Instrumented Systems)
Compatible IOTA Base Units & Controller Hardware:
Honeywell CC-TDIL01 / 8C-TDIL01: Digital Input IOTA Terminal Assembly (Redundant / Non-Redundant)
Honeywell CC-PCNT02: C300 Controller Processor Module
Honeywell CC-PWRR01: 24V DC Redundant System Power Supply Module
Priary Industrial Applications
The Honeywell CC-PDIL01 module is widely specified across critical discrete and sequence monitoring systems:
Oil & Gas / Petrochemical Plants (Middle East): Position feedback monitoring for emergency shutdown valves (ESD), motor starter feedback, and local control panel interlocks.
Offshore Platforms & LNG Processing: High-reliability contact closure sensing for safety systems, fire & gas detection panels, and skid equipment.
Power Generation & Utility Boilers: Trip contact monitoring, breaker status sensing, and auxiliary motor status inputs.
Chemical & Water Treatment (Southeast Asia): Tank level switch sensing, pump run/stop status tracking, and automated valve sequence control.
Why Source From Us? Our Global Trade Advantages
As an established international supplier of Honeywell DCS, Experion PKS, and industrial automation hardware, we partner with system integrators, EPC contractors, and regional stocking distributors across the Middle East and Southeast Asia.
When procuring the Honeywell CC-PDIL01 module through our export organization, you receive clear commercial and operational benefits:
100% Genuine & Factory-Sealed: All modules supplied are brand-new, authentic Honeywell items in original factory packaging with full serial number traceability.
Competitive B2B Wholesale Pricing: Optimized direct procurement channels allow us to offer tier-one export pricing to enhance your project bid competitiveness.
Ready Stock & Fast International Dispatch: We maintain safety stock of high-demand Series 8 I/O modules for immediate express shipping via DHL, FedEx, UPS, or air cargo to Dubai, Abu Dhabi, Singapore, Jakarta, and Ho Chi Minh City.
Dedicated Multi-Lingual Engineering Support: Immediate inquiry handling with formal quotations issued within 1 to 2 hours, supported by specialists via Email, WhatsApp, or WeChat.
