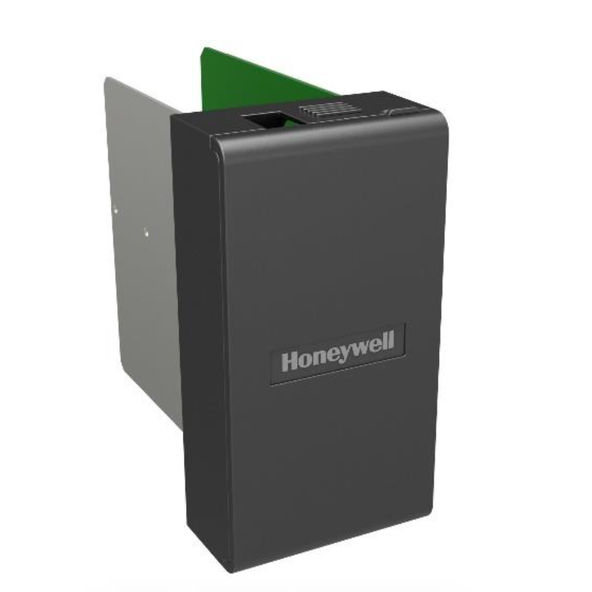

Honeywell 900P01-0301 HC900 Power Supply Module
Industrial Automation & Process Control Solutions
Serving Middle East (UAE, KSA, Qatar) & Southeast Asia (Vietnam, Indonesia, Thailand)
100% Genuine Honeywell Brand | Direct Factory Sourcing | Global Fast Stocking
Executive Overview
The Honeywell 900P01-0301 module is a high-reliability, 24V DC input power supply module specifically engineered for the Honeywell HC900 Hybrid Control System. Designed to power the HC900 Controller CPU, I/O racks, and communication expansion bases, this 60W power module ensures uninterrupted operation in mission-critical process control applications across chemical processing, thermal management, water treatment, and oil & gas facilities.
Built to perform reliably in demanding operational environments throughout Dubai, Riyadh, Singapore, Jakarta, and Ho Chi Minh City, the 900P01-0301 features advanced over-voltage, over-current, and surge protection to safeguard your system architecture against field power fluctuations.
Key Features & Product Highlights
-
System-Grade Reliability: Provides stable, regulated internal power to the CPU, Scanner, and I/O modules across the HC900 rack.
-
Wide 24V DC Input Range: Accepts 21.6V DC to 27V DC input, making it ideal for standard industrial 24V DC battery backup and UPS distribution systems.
-
Integrated Status Diagnostics: Front-panel LED indicators provide instant visual verification of input power status and internal output health.
-
Heavy-Duty Industrial Design: Operates effectively in high-temperature ambient conditions (0°C to 60°C) with conformal coating options for harsh atmospheres.
-
Hot-Swappable Capabilities: Supports quick field maintenance and module replacement, minimizing process downtime during system servicing.
-
Seamless Rack Integration: Mounts directly into the left-most slot of Honeywell 900R04, 900R08, 900R12, or 900R08R CPU and expansion racks.
Comprehensive Technical Specifications
| Parameter Category | Specification Details |
| Product Model | Honeywell 900P01-0301 (HC900 Series) |
| Module Type | Rack Power Supply Module (24V DC Input) |
| Input Voltage Rating | 24V DC (Operating Range: 21.6 to 27.0 V DC) |
| Output Power Rating | 60 Watts |
| Input Current Rating | ~3.0A @ 24V DC (Full Rated Load) |
| Inrush Current | Max 30A peak for < 2 ms @ 24V DC |
| Hold-up Time | 20 ms @ nominal 24V DC input at full load |
| Diagnostics / Status | Front Panel LED (Green = Power Normal, Off = Fault/No Power) |
| Isolation Protection | 1500V AC input to backplane / chassis ground |
| Mounting Position | Dedicated Power Supply Slot (Slot 0) in HC900 Racks |
| Operating Temperature | 0°C to 60°C (32°F to 140°F) |
| Storage Temperature | -40°C to 85°C (-40°F to 185°F) |
| Relative Humidity | 10% to 90% RH (Non-condensing) |
| Weight | ~0.85 kg |
Honeywell HC900 Power Supply Part Number & System Logic
Understanding the model suffix and hardware variations within the Honeywell HC900 product family simplifies system design and spare parts procurement:
Order Code Pattern:
900P01+-[Voltage/Revision Code]
1. Model Breakdown: 900P01-0301
-
900P01: Honeywell HC900 Series Power Supply Module Base Platform
-
-0301: 24V DC Input, 60W Capacity (Redesign / Current Hardware Generation)
2. Full Power Supply & Rack Accessories Selection Matrix
To help system integrators and EPC contractors cross-reference or source complete system racks, refer to the following hardware quick guide:
Power Supply Variants:
-
Honeywell 900P01-0001: 120/240V AC Input Power Supply Module (Universal AC Input, 60W)
-
Honeywell 900P01-0301: 24V DC Input Power Supply Module (Standard 24V DC, 60W) (Featured Model)
-
Honeywell 900P02-0001: Redundant AC Power Supply Module (For Redundant CPU Racks)
-
Honeywell 900P02-0301: Redundant DC Power Supply Module (For Redundant DC Systems)
Compatible Rack Base Units:
-
900R04-0001: 4-Slot I/O Expansion / CPU Rack
-
900R08-0001: 8-Slot I/O Expansion / CPU Rack
-
900R12-0001: 12-Slot I/O Expansion / CPU Rack
-
900R08R-0001: 8-Slot Redundant CPU Base Rack
Primary Industrial Applications
The Honeywell 900P01-0301 module is widely specified across critical infrastructure and process automation projects:
-
Oil & Gas / Petrochemicals (Middle East): Powers burner management systems (BMS), emergency shutdown (ESD) interfaces, and off-site tank farm monitoring.
-
Thermal Processing & Industrial Kilns: High-precision multi-zone furnace temperature control and heat treatment lines.
-
Water & Wastewater Treatment (Southeast Asia): Dosing control systems, filtration monitoring, and regional pumping station automation.
-
Pharmaceuticals & Power Generation: Environmental monitoring systems, boiler control, and utility management units.
