Fluke 729-150G FC Automatic Pressure Calibrator (150 psi / 10 bar, Wireless)
Process Calibration & Precision Instrumentation Solutions
Serving Middle East (UAE, KSA, Qatar) & Southeast Asia (Vietnam, Indonesia, Thailand)
100% Genuine Fluke Product | Direct Factory Sourcing | Express Global Shipping
Executive Overview

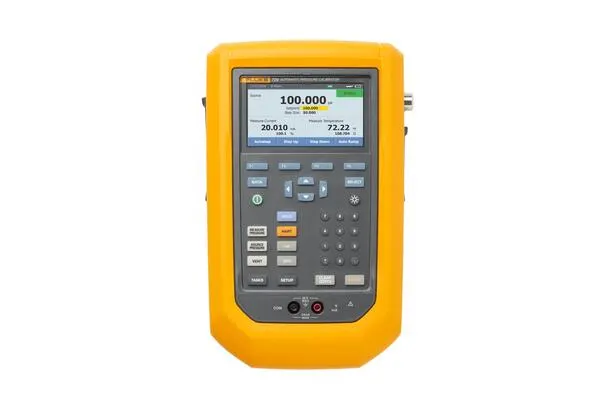

The Fluke 729-150G FC calibrator is a portable, fully automatic pressure calibrator specifically engineered to simplify and speed up field pressure calibration tasks. Equipped with an internal electric pump that automatically pumps and fine-tunes pressure up to 150 psi (10 bar / 1 MPa), this handheld calibrator eliminates the need for manual hand pumps and external pressure sources during field instrument servicing.
Widely utilized across oil & gas refineries, pharmaceutical plants, offshore platforms, and power stations throughout Dubai, Riyadh, Singapore, Jakarta, and Ho Chi Minh City, the Fluke 729-150G FC features built-in HART communication, automatic test documentation, and wireless integration via the Fluke Connect® mobile app.
Key Features & Product Highlights
-
Automatic Pressure Generation & Control: Built-in electric pump automatically generates and regulates pressure up to 150 psi (10 bar) at user-defined setpoints with the press of a button.
-
Integrated HART Communication: Communicates natively with HART transmitters for configuration, multi-point calibration, loop tuning, and zero adjustment without requiring a separate HART communicator.
-
Automatic As-Found / As-Left Documentation: Automatically logs pressure generation, mA measurement, and error calculations to internal memory to simplify ISO and regulatory compliance.
-
Fluke Connect® Wireless Capability: Wirelessly transfers measurements to smartphones or tablets, allowing remote monitoring and seamless data synchronization with team members.
-
Full Transmitter Loop Testing: Measures 4 to 20 mA signals, provides 24V loop power, and measures $V\text{ DC}$ and switch test points simultaneously.
-
Rugged Field-Ready Design: Built with Fluke’s signature drop-tested housing, a bright color graphic display, and rechargeable lithium-ion battery for full-day field operation.
Comprehensive Technical Specifications
| Parameter Category | Specification Details |
| Product Model | Fluke 729-150G FC (729 Series Family) |
| Pressure Range | -12 psi to 150 psi (-0.8 bar to 10 bar / -80 kPa to 1 MPa) |
| Pressure Resolution | 0.001 psi (0.0001 bar / 0.01 kPa) |
| Pressure Accuracy | $\pm0.02\%$ of full scale |
| Internal Pump Type | Electric automatic pump and micro-adjustment control |
| mA Measurement / Loop Power | Range: 0 to 24 mA | Accuracy: $$\pm0.01\$ RDG $$+ 2\text{ }\mu\text{A$ | 24V DC loop power |
| DC Voltage Measurement | 0 to 30V DC (Accuracy: $\pm0.01\%$ RDG $+ 2\text{ mV}$) |
| HART Communication | Built-in HART modem for Smart Transmitter configuration |
| Wireless Interface | Fluke Connect® WiFi / Bluetooth connectivity |
| Display | Color graphic LCD screen |
| Operating Temperature | -10 °C to 50 °C (14 °F to 122 °F) |
| Dimensions & Weight | 290 mm $\times$ 215 mm $\times$ 100 mm | ~2.95 kg |
Fluke 729 Series Model Lineup & Selection Logic
Understanding the pressure range options within the Fluke 729 Portable Automatic Pressure Calibrator family ensures purchasing managers select the exact unit for their field transmitters:
Order Code Pattern:
Fluke 729+-[Pressure Rating]+[FC (Fluke Connect)]
1. Model Breakdown: Fluke 729-150G FC
-
Fluke 729: Automatic Portable Pressure Calibrator Platform
-
150G: 150 psi Gauge Pressure Rating (10 bar / 1 MPa)
-
FC: Fluke Connect® Wireless Technology Included
2. Full Fluke 729 Series Comparison Matrix
To help process instrument engineers select the appropriate pressure range for their plant infrastructure, refer to the following guide:
| Model | Pressure Range (psi) | Pressure Range (bar) | HART Protocol | Wireless FC |
| Fluke 729 30G FC | -12 to 30 psi | -0.8 to 2 bar | Yes | Yes |
| Fluke 729 150G FC | -12 to 150 psi | -0.8 to 10 bar | Yes | Yes (Featured) |
| Fluke 729 300G FC | -12 to 300 psi | -0.8 to 20 bar | Yes | Yes |
Note: All Fluke 729 models are compatible with external Fluke 750P Series pressure modules for extended measurement ranges.
Primary Industrial Applications
The Fluke 729-150G FC calibrator is widely specified in process facilities requiring fast, precise pressure verification:
-
Oil & Gas / Petrochemical Refineries (Middle East): Calibration of pressure transmitters, I/P converters, differential pressure flowmeters, and safety switches.
-
Pharmaceutical & Fine Chemicals: High-accuracy sanitary pressure transmitter verification with full automated audit trails.
-
Power Generation & Utility Boilers: Boiler draft, feed-water pressure, and steam pressure line transmitter testing.
-
Offshore & Marine Industry (Southeast Asia): Remote deck calibration where carrying manual pumps and external gas bottles is impractical or hazardous.
Why Source From Us? Our Global Trade Advantages
As a trusted exporter of Fluke process calibration tools, pressure calibrators, and electrical test instruments, we partner with process plant managers, EPC contractors, and regional instrumentation distributors across the Middle East and Southeast Asia.
When procuring the Fluke 729-150G FC calibrator through our organization, you gain distinct operational and commercial benefits:
-
100% Genuine & Factory Calibrated: Guaranteed brand-new, authentic Fluke instrumentation complete with original factory packaging, NIST-traceable calibration certificates, and full serial number verification.
-
Competitive Wholesale Export Pricing: Direct supply channels allow us to offer tier-one B2B pricing to support your project tenders and maintenance budgets.
-
Ready Stock & Fast International Freight: High-demand process calibrators are maintained in inventory for immediate express dispatch via DHL, FedEx, UPS, or air freight to Dubai, Abu Dhabi, Singapore, Jakarta, and Ho Chi Minh City.
-
Dedicated Multi-Lingual Support: Fast inquiry turnaround with detailed technical quotations delivered within 1 to 2 hours, supported by product specialists via Email, WhatsApp, or WeChat.
