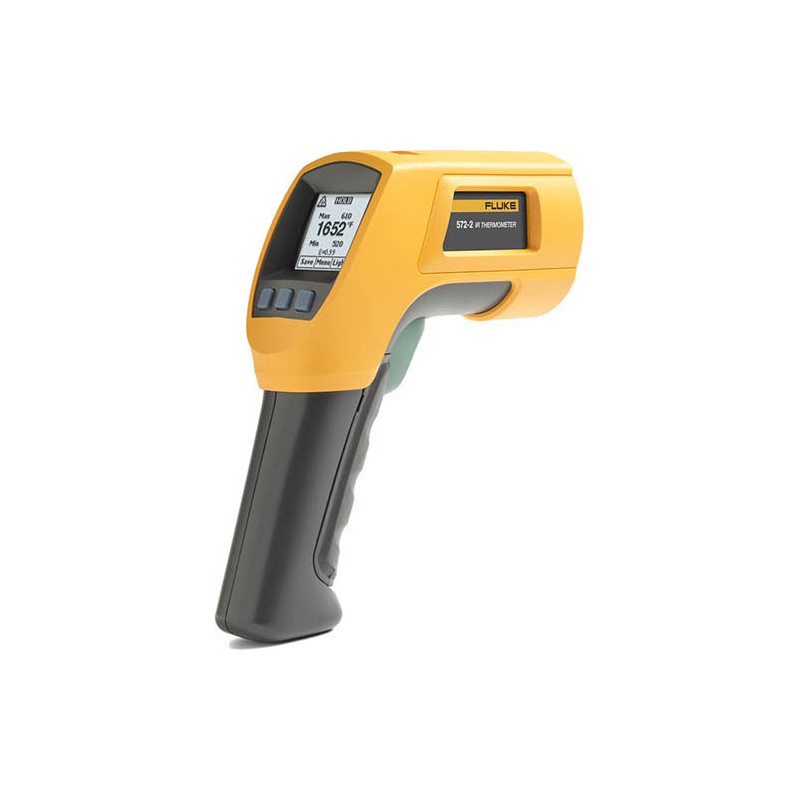

Fluke 572-2 High-Temperature Infrared Thermometer
Fluke 572-2 High-Temperature Infrared Thermometer
Executive Overview
The Fluke 572-2 thermometer is an industrial-grade, non-contact infrared temperature measurement device designed for extreme high-temperature environments up to 900 °C (1652 °F). Featuring an advanced 60:1 distance-to-spot ratio with dual-laser sighting, this rugged hand-held thermometer enables maintenance technicians, process engineers, and electricians to accurately measure small target areas from long, safe distances.
Widely relied upon in steel mills, glass manufacturing plants, oil refineries, and electrical utility stations throughout Dubai, Riyadh, Singapore, Jakarta, and Ho Chi Minh City, the Fluke 572-2 delivers reliable contact and non-contact temperature diagnostics with built-in USB data logging.
Key Features & Product Highlights
-
60:1 Distance-to-Spot Ratio (D:S): Allows precise measurements of very small targets from safer stand-off distances in hazardous environments.
-
Dual-Laser Sighting System: Pinpoints the exact measurement area on hot or moving targets with high visibility.
-
Broad Temperature Range: Measures non-contact temperatures from -30 °C to 900 °C (-22 °F to 1652 °F) with exceptional repeatability.
-
Dual IR & K-Type Contact Measurement: Compatible with standard mini-connector Type-K thermocouple probes for dual-verification testing.
-
USB Interface & On-Board Data Storage: Stores up to 99 data points and exports readings to PC via USB for trend analysis and report generation.
-
Adjustable Emissivity & Built-in Table: Features pre-set emissivity tables for common materials (metals, ceramic, rubber) to simplify accurate field testing.
Comprehensive Technical Specifications
| Parameter Category | Specification Details |
| Product Model | Fluke 572-2 (570 Series High-Temp Family) |
| Infrared Temperature Range | -30 °C to 900 °C (-22 °F to 1652 °F) |
| Distance-to-Spot (D:S) Ratio | 60:1 |
| Measurement Accuracy |
$\ge0\text{ }^\circ\text{C}$: $\pm1.0\text{ }^\circ\text{C}$ or $\pm1.0\%$ of reading (whichever is greater)
$<0\text{ }^\circ\text{C}$: $\pm(1.0\text{ }^\circ\text{C} + 0.1\text{ }^\circ\text{C}/\text{degree})$ |
| Response Time | $< 500\text{ ms}$ (95% of reading) |
| Spectral Response | 8 $\mu\text{m}$ to 14 $\mu\text{m}$ |
| Laser Sighting | Dual-laser (highlights outer perimeter of measurement spot) |
| K-Type Thermocouple Input Range | -270 °C to 1372 °C (-454 °F to 2501 °F) |
| Emissivity Adjustment | Digitally adjustable from 0.10 to 1.00 by 0.01 |
| Data Storage / Connectivity | 99 Data Log Records / USB 2.0 Interface |
| Display Type | Dot-matrix LCD with multi-level backlight |
| Power Supply | 2 $\times$ AA Batteries or USB Power |
| Weight & Dimensions | ~0.322 kg | 179 mm $$\time$ 164 mm $$\time$ 57 mm |
Fluke Infrared Thermometer Lineup & Selection Logic
Understanding the model variations across the Fluke handheld infrared temperature family simplifies instrument selection for field services:
Order Code Pattern:
Fluke+-[Model Series]
1. Model Breakdown: Fluke 572-2
-
Fluke: Precision Test Instrumentation
-
572-2: High-Temperature Heavy Industrial Series (60:1 D:S, Dual Laser, USB Logging, Up to 900 °C)
2. Full Fluke Handheld IR Thermometer Comparison Matrix
To help maintenance teams and purchasing managers select the appropriate tool for their target applications, refer to the following selection guide:
| Model | Temp Range | D:S Ratio | Sighting | USB Logging | Key Ideal Use |
| Fluke 62 MAX+ | -30 °C to 650 °C | 12:1 | Dual Laser | No | General HVAC & Electrical Maintenance |
| Fluke 568 | -40 °C to 800 °C | 50:1 | Single Laser | Yes | Plant Maintenance & Contact Probe |
| Fluke 572-2 | -30 °C to 900 °C | 60:1 | Dual Laser | Yes | High-Temp Metallurgy & Petrochemical (Featured) |
| Fluke 575-2 | -30 °C to 900 °C | 60:1 | Dual Laser | Yes | Advanced Industrial with Photo Capture |
Primary Industrial Applications
The Fluke 572-2 thermometer is widely specified across critical high-temperature thermal testing programs:
-
Metal Processing & Foundries (Middle East): Monitoring furnace wall temperatures, ladle refractory linings, and hot billet transport lines.
-
Petrochemical Refineries & Power Plants: Inspection of high-pressure steam pipes, boiler tubes, flare stacks, and catalytic reactors.
-
Glass & Ceramic Manufacturing: Thermal verification during glass forming, annealing lehrs, and kiln operations.
-
Electrical Utility & Substation Maintenance (Southeast Asia): Long-distance thermal checks on high-voltage transformers, overhead splices, and outdoor switchgear.
Why Source From Us? Our Global Trade Advantages
As an established international supplier of Fluke test instruments, thermal cameras, and process calibrators, we partner with industrial plant managers, electrical contractors, and regional equipment distributors across the Middle East and Southeast Asia.
When procuring the Fluke 572-2 thermometer through our export organization, you receive distinct commercial and operational benefits:
-
100% Genuine & Factory Calibrated: All units supplied are authentic, brand-new Fluke instruments in original factory packaging with full manufacturer calibration certificates and serial number integrity.
-
Competitive B2B Export Pricing: Optimized trade channels allow us to offer tier-one wholesale pricing to improve your equipment tender competitiveness.
-
Ready Stock & Fast International Freight: We maintain safety stock of high-demand Fluke test tools for immediate express shipment via DHL, FedEx, UPS, or air cargo to Dubai, Abu Dhabi, Singapore, Jakarta, and Ho Chi Minh City.
-
Dedicated Multi-Lingual Technical Support: Immediate inquiry handling with formal quotations issued within 1 to 2 hours, supported by product specialists via Email, WhatsApp, or WeChat.
