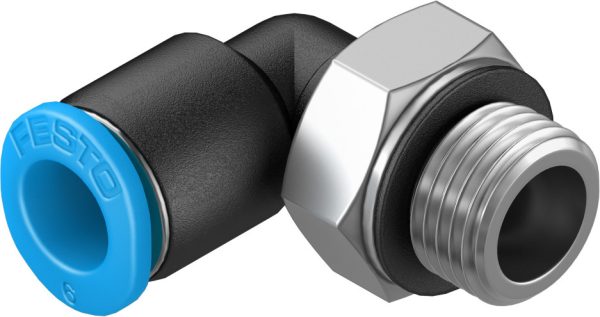

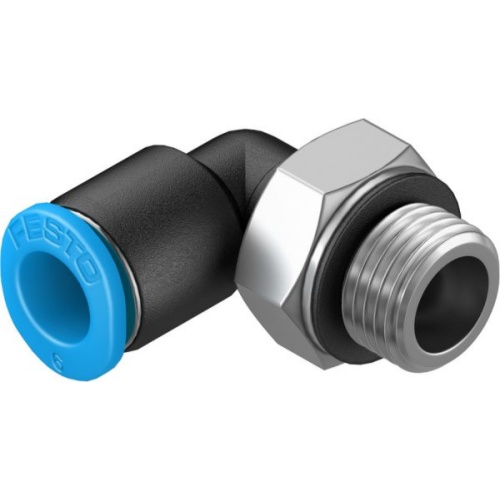

FESTO Push-in L-fitting QSML-G1/8-6

Technical Data

• SizeMini
• Nominal size3.3 mm
• Type of seal on screwed plugSealing ring
• Mounting positionoptional
• DesignL-shape
• Size of pack10
• DesignPush-pull principle
• Operating pressure complete temperature range-0.095 MPa … 0.6 MPa
• Operating pressure complete temperature range-0.95 bar … 6 bar
• Operating pressure complete temperature range-13.775 psi … 87 psi
• Temperature-dependent operating pressure-0.095 MPa … 1.4 MPa
• Temperature-dependent operating pressure-0.95 bar … 14 bar
• Temperature-dependent operating pressure-13.775 psi … 203 psi
• Operating mediumCompressed air to ISO 8573-1:2010 [7:-:-]
• Note on operating and pilot mediumLubricated operation possible
• Corrosion resistance class CRC1 – Low corrosion stress
• LABS (PWIS) conformityVDMA24364-B1/B2-L
• Ambient temperature-10 °C … 80 °C
• Nominal torque5.4 Nm
• Tolerance for nominal tightening torque± 20%
• Product weight9.7 g
• Type of mountingExternal hexagon, A/F 13 mm
• Pneumatic connection, port 1Male thread G1/8
• Pneumatic connection, port 2For tubing outside diameter of 6 mm
• Colour of release ringBlue
• Material screwed plugNickel-plated brass
• Note on materialsRoHS-compliant
• Material housingPBT
• Material release ringPOM
• Material tubing sealNBR
• Material tubing clamp componentHigh-alloy stainless steel
