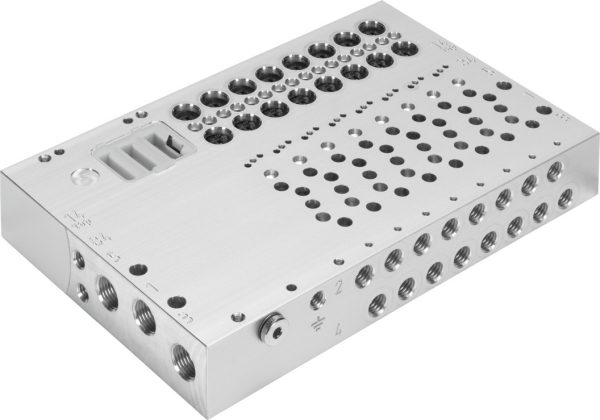

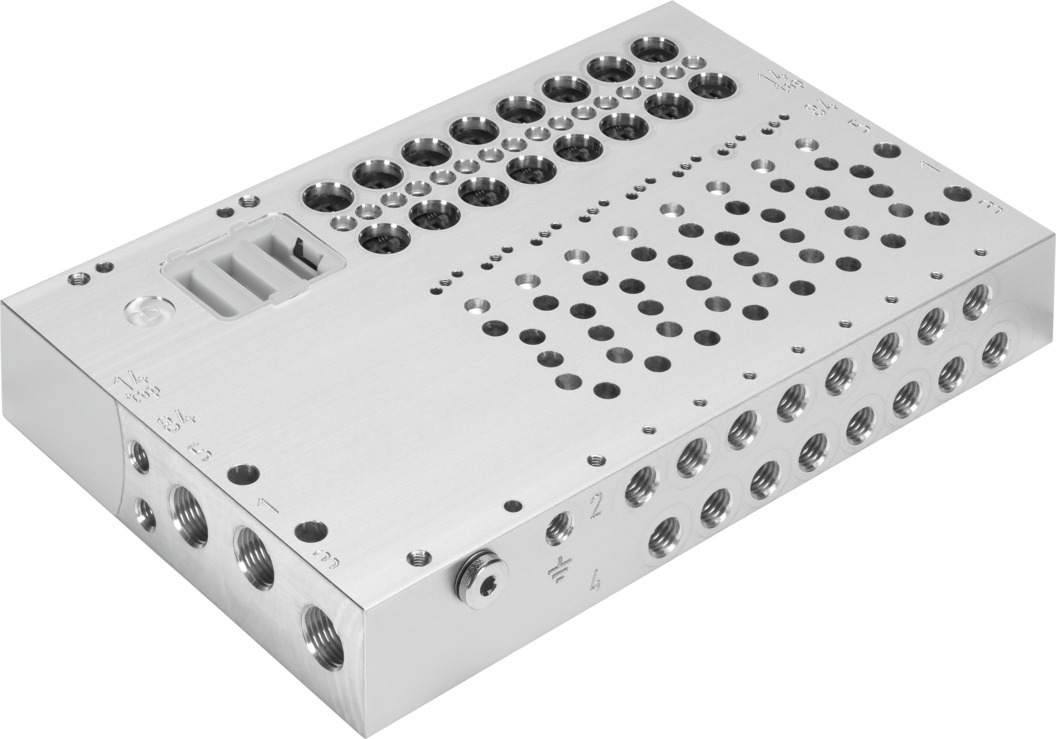

FESTO Manifold rail VABM-L1-10HW-G18-16-GR
Technical Data
- Grid dimension10.5 mm
- Mounting positionoptional
- Max. number of valve positions16
- Approvalc UL us – Recognized (OL)
- Corrosion resistance class CRC2 – Moderate corrosion stress
- LABS (PWIS) conformityVDMA24364-B1/B2-L
- Suitability for the production of Li-ion batteriesMetals with more than 1% by mass of copper, zinc or nickel are excluded from use.The exceptions are nickel in steel, chemically nickel-plated surfaces, circuit boards, cables, electrical plug connectors and coils
- Cleanroom classClass 6 according to ISO 14644-1
- Storage temperature-20 °C … 60 °C
- Product weight844 g
- Pilot air port 12/14M5
- Pilot exhaust port 82/84M5
- Pneumatic connection, port 1G1/8
- Pneumatic connection, port 2M7
- Pneumatic connection, port 3G1/8
- Pneumatic connection, port 4M7
- Pneumatic connection, port 5G1/8
- Note on materialsRoHS-compliant
- Material manifold railWrought aluminium alloy
