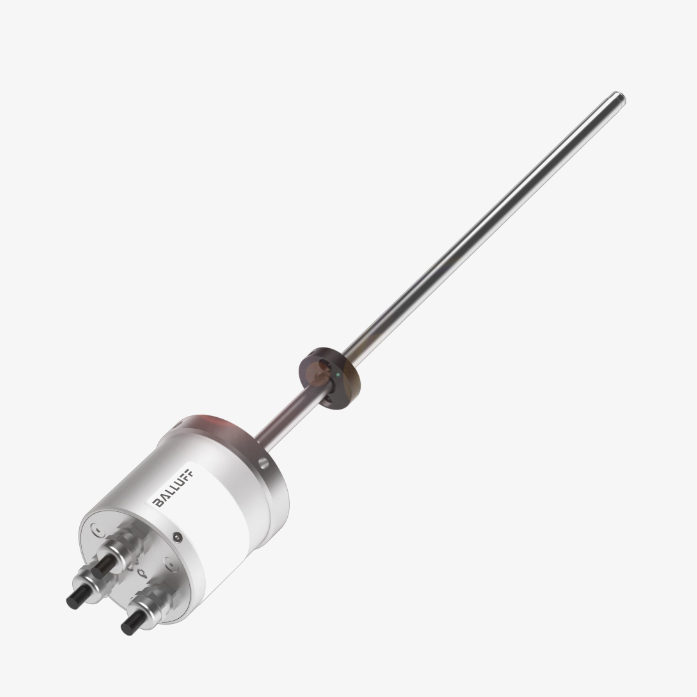

BALLUFF Magnetostrictive linear position sensors for explosive areas BTL7-E504-M5300-TB2-NEX-S32
Key features
Style: Rod series
Mounting part: Threaded flange M18x1.5
Housing material: Aluminium, Anodized
Magnets, number max.: 1
Connection: Connector, M16x0.75, 8-pin
Connection 1: M16x0.75, 8-pin
Connection 2: M16x0.75, 8-pin
Analog output: 2x Analog, current 4…20 mA
Measuring range: 5300 mm
Sampling frequency max.: 175 Hz
Non-linearity max. :±0.04 % FS
Repeat accuracy: ± 5 µm
Operating voltage: Ub 10…30 VDC
Ambient temperature: -40…60 °C
IP rating: IP67
Approval/Conformity
CE
UKCA
IECEx
WEEE
UKCA
IECEx
WEEE
Ex category
ATEX: 3G (EPL Gc)
ATEX: 2D (EPL Db)
IECEx: EPL Gc
IECEx: EPL Db
ATEX: 2D (EPL Db)
IECEx: EPL Gc
IECEx: EPL Db
