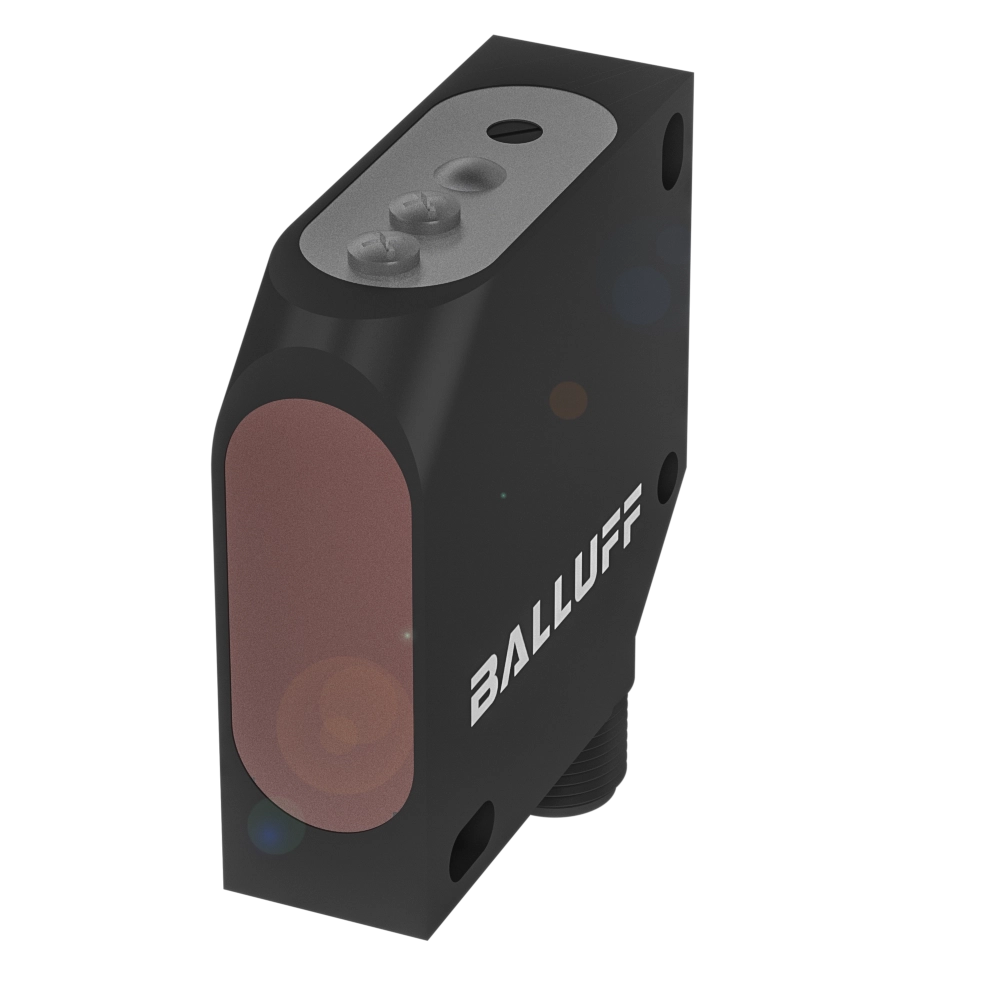

BALLUFF BOS 26K-PA-1LHC-S4-C Cubic diffuse sensors with different light types up to 60 cm range
Key features
Series
26K
Dimension
17 x 50 x 50 mm
Interface
PNP normally open (NO)
PNP normally closed (NC)
PNP normally closed (NC)
Principle of operation
Photoelectric sensor
Principle of optical operation
Diffuse sensor, triangulation
Special optical feature
Background suppression
Beam characteristic
Collimated
Light type
Laser red light
Light spot size
3 x 1 mm at 300 mm
Range
50…300 mm
Connection
Connector, M12x1-Male, 4-pin
Housing material
ABS
Material sensing surface
PMMA
Operating voltage Ub
10…30 VDC
Approval/Conformity
cULus
CE
WEEE
CE
WEEE
