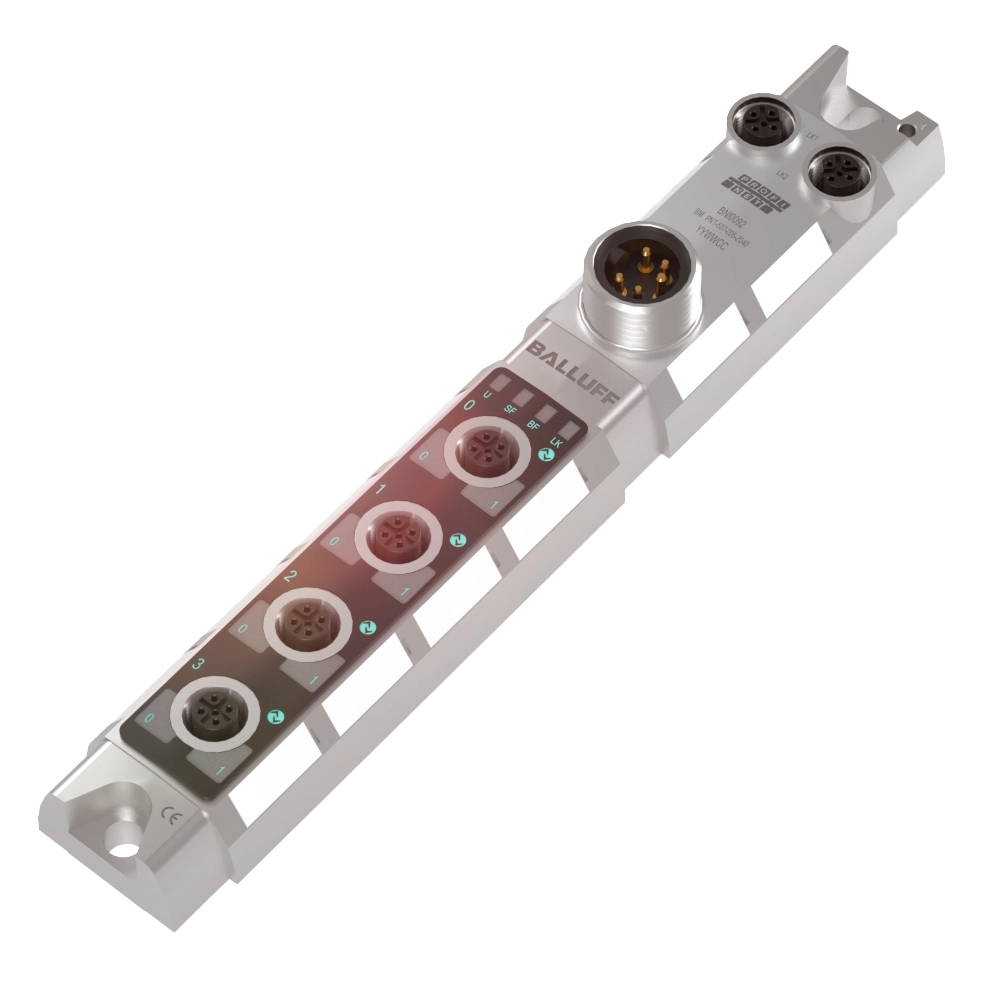

BALLUFF BNI0092 PNT-507-005-Z040 Silver Line – Network Modules in Metal Housing for Specialized Applications
Key features
Interface
Profinet
Auxiliary interfaces
4x IO-Link
Port-class
Type A
Output current max.
2 A
Fast Start-Up (FSU)
yes
Operating voltage Ub
18…30.2 VDC
Connection (COM 1)
M12x1-Female, 4-pin, D-coded
Connection (COM 2)
M12x1-Female, 4-pin, D-coded
Connection (supply voltage IN)
7/8″-Male, 5-pin
Connection slots
4x M12x1-Female, 5-pin, A-coded
Digital inputs
8x PNP, Type 3
Digital outputs
8x PNP
Configurable inputs/outputs
yes
Current sum US, sensor
9.0 A
Current sum UA, actuator
9.0 A
Housing material
Die-cast zinc, nickel-plated
Dimension
37 x 32.6 x 224 mm
Ambient temperature
-40…70 °C
IP rating
IP67
IO-Link version
1.1
Safety Hub Support
yes
