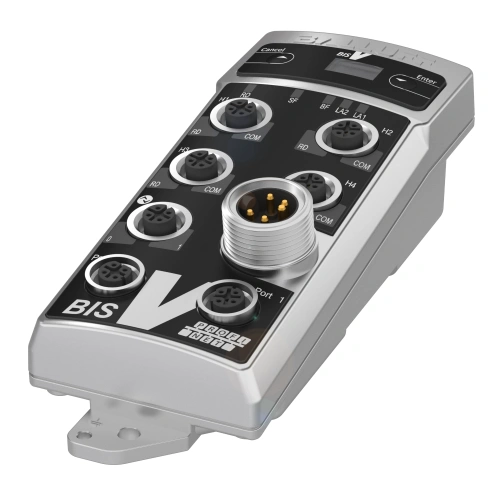

BALLUFF BIS013 BIS V-6108-048-C002 Evaluation units for the HF range (13.56 MHz)
Product group
Multi-Frequency Processor
Interface
Profinet I/O (IRT)
2 port Switch
2 port Switch
Supported RFID technologies
LF 125 kHz (BIS VL)
HF 13.56 MHz (BIS VM)
UHF 860…930 MHz (BIS VU)
HF 13.56 MHz (BIS VM)
UHF 860…930 MHz (BIS VU)
Number of connectable R/W heads / antennas
4
Operating voltage Ub
24 V DC SELV/PELV
Housing material
Zinc, Die casting
Ambient temperature
0…60 °C
IP rating
IP65, with connector
Approval/Conformity
CE
UKCA
cULus
WEEE
UKCA
cULus
WEEE
Connection
2x M12x1-Female, 4-pin, D-coded
7/8″-Male, 5-pin
7/8″-Male, 5-pin
