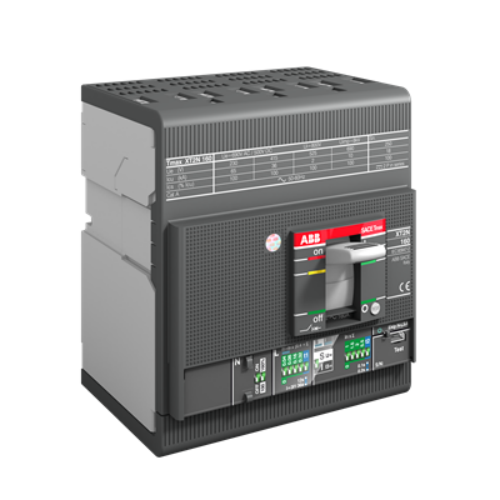

Ultimate Guide to ABB XT2N 160 Ekip LSIG In=63A 4P F F: The Smart 4-Pole MCCB for Advanced Grid Protection
In modern industrial power management, safeguarding infrastructure requires more than basic thermal fuses. For B2B procurement managers, panel builders, and electrical wholesalers searching for top-tier circuit protection that combines heavy-duty breaking capacity with advanced digital trip technology, the ABB SACE Tmax XT2N 160 Ekip LSIG In=63A 4P F F stands out as an industry-leading choice.
As a flagship model within ABB’s premium SACE Tmax XT low-voltage circuit breaker series, this specific device is engineered to provide precise, electronic protection for critical networks, making it a highly valued asset for international engineering tenders and wholesale supply chains.
Decoding the Power of the Ekip LSIG Trip Unit
The defining feature of this MCCB is its Ekip LSIG electronic microprocessor. Unlike standard thermal-magnetic breakers, the Ekip LSIG unit allows operators to fine-tune four distinct protection thresholds independently:
- L (Long Time): Overload protection with adjustable current thresholds and time delays.
- S (Short Time): Selective short-circuit protection to isolate faults locally without shutting down the entire facility.
- I (Instantaneous): Instant short-circuit protection that trips immediately during catastrophic faults.
- G (Ground Fault): Advanced earth-fault detection to protect machinery against insulation failure and mitigate fire risks.
This level of granularity ensures total selectivity, meaning only the breaker closest to the electrical fault will trip, keeping the rest of your industrial plant running smoothly.
Key Operational Advantages
1. High-Precision Electronic Adjustability
With an electronic trip unit, thermal ambient temperature does not cause nuisance tripping. The 63A rating can be adjusted downward via simple rotary dials on the front interface, allowing a single stock unit to adapt to various load requirements, drastically lowering inventory holding costs for distributors.
2. Fully Protected 4-Pole Network Safety
Modern industrial grids experience high harmonic distortion and unbalanced loads, which can overheat neutral lines. The 4P configuration ensures that the neutral phase is fully monitored and protected alongside the three live phases, eliminating the risk of catastrophic neutral burnouts.
3. Compact Architecture, Massive Integration Space
ABB’s SACE Tmax XT2 frame packs extraordinary breaking performance and electronic intelligence into an ultra-compact footprint. The F F (Front Terminal) configuration makes front-facing cable or busbar connection quick and secure, allowing panel builders to optimize space inside crowded switchboards.
4. Ready for Digital Smart Grids
The Ekip LSIG module is built for the Internet of Things (IoT). It can be fitted with internal communication modules (such as Modbus, Profibus, or Bluetooth) to transmit real-time current metrics, trip logs, and diagnostic health data directly to a central Distributed Control System (DCS) or cloud monitoring software.
Global Compliance and Premium Applications
To ensure hassle-free customs clearance and universal project acceptance for international trade, the ABB XT2N 160 satisfies strict cross-border benchmarks:
- IEC 60947-2 (Global Low-Voltage Switchgear Standard)
- CE / CCC / EAC (European, Chinese, and Eurasian Quality Certifications)
- Marine & Offshore Ratings (ABS, DNV GL, Bureau Veritas for rugged marine use)
Typical Deployment Scenarios:
- Data Centers & Telecom Hubs: Where power continuity and selective tripping are mandatory.
- Critical Manufacturing Lines: Protecting expensive motor management systems and automated assembly loops.
- Commercial Building Infrastructure: Main or sub-distribution panel boards requiring ground-fault safety.
- Renewable Energy Grids: Main switches inside solar inverter panels or wind turbine distribution blocks.
Why Source the ABB XT2N 160 From Us?
As an established international exporter of industrial switchgear, we specialize in delivering authentic ABB low-voltage products to global markets:
- 100% Genuine & Factory-New: Every MCCB is shipped in its original ABB packaging with intact anti-counterfeit seals and serial numbers.
- Competitive B2B Wholesale Pricing: Our direct procurement access enables us to offer major cost savings on bulk project orders.
- Fast Export Logistics: We maintain ready stock of the Tmax XT series to minimize your lead times, backed by professional export packaging and documentation support.
If you want to upgrade your network protection or add a highly requested model to your wholesale stock, we are here to help. Please state your required target quantity and shipping destination port below, and our commercial sales team will send you a formal B2B quote within 24 hours.
