We supply the Comuniction Optical Fibre, Cable products, Specialty Fibre, ODN product, and Optical Transceiver.
Optical Fibre and cables

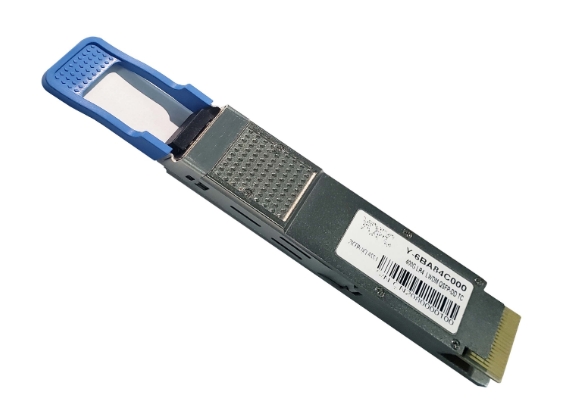

400G Optical transceiver Optical Fibre product
- Applications
-
- Data Center, Enterprise, Telecommunication and other optical links
- Characteristics
-
- Hot-pluggable, digital diagnostics functions
- Meet EMI, ESD
- RoHS compliant
- Class 1/1M Standard product, Compliant IEC60825-1
- Telcordia（bellcore）GR-468-CORE reliability compliant
- Operating temperature 0 – 70℃
Specifications
| Remark | Package | Connector | Data Rate | Wavelength | Reach | Transmitter | Power | Receiver | Power | Part NO. |
|---|---|---|---|---|---|---|---|---|---|---|
| 400G SR8 | QSFP-DD | MPO-16 | 400G | 850nm | 100m | VCSEL | -6.0 to 4 | PIN | -7.9 to 4 | Y-6BA40C000 |
| 400G DR4 | QSFP-DD | MPO-12 | 400G | 1310nm | 500m | EML | -2.9 to 4 | PIN | -5.9 to 4 | Y-6BA62C000 |
| 400G FR4 | QSFP-DD | LC | 400G | CWDM4 | 2km | EML | -3.3 to 3.5 | PIN | -7.3 to 3.5 | Y-6BA73C000 |
| 400G LR4 | QSFP-DD | LC | 400G | CWDM4 | 10km | EML | -1.4 to 4.5 | PIN | -7.7 to 4.5 | Y-6BA84C000 |
