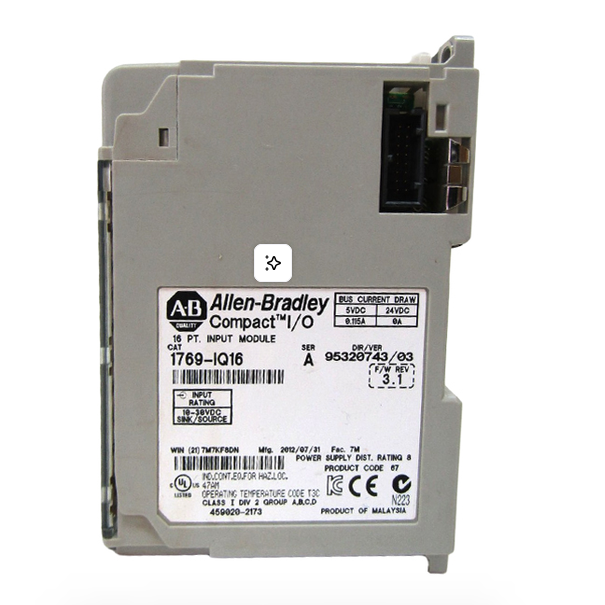

1769-IQ16 | Allen Bradley 1769 Compact Digital DC I/O Module
| Model | 1769-IQ16 | |
| Inputs |
16 (8 points/group) | |
| Voltage category | 24V DV sink/source | |
| Operating voltage range | 10 30V DC @ 30°C (86°F) 10 26.4V DC @ 60°C (140°F) |
|
| Input delay, on | 8 ms | |
| Input delay, off | 8 ms | |
| Current draw @ 5.1V | 115 mA | |
| Heat dissipation, max | 3.55 W | |
| Off-state voltage, max | 5V DC | |
| Off-state current, max | 1.5 mA | |
| On-state voltage, min | 10V DC | |
| On-state current, min | 2 mA | |
| Inrush current, max | 250 mA | |
| Input impedance, nom | 3 k | |
| Isolation voltage | Verified by one of the following dielectric tests: 1200V AC for 1 s or 1697V DC for 1 s, input point to bus and group to group 75V DC working voltage (IEC Class 2 reinforced insulation) |
|
| Weight, approx | 270 g (0.60 lb) | |
| Dimensions (HxWxD), approx | 118 x 35 x 87 mm (4.65 x 1.38 x 3.43 in.) Height with mounting tabs 138 mm (5.43 in.) |
|
| Slot width | 1 | |
| Module location | DIN rail or panel mount | |
| Power supply | 1769-PA2, 1769-PB2, 1769-PA4, 1769-PB4 | |
| Power supply distance rating | 8 modules | |
| Terminal screw torque | 0.6 N m (6 lb in) | |
| Retaining screw torque | 0.46 N m (4.1 lb in) | |
| Wire size | (22 14 AWG) solid (22 16 AWG) stranded |
|
| Wire type | Cu-90 ?C (194 ?F) | |
| IEC input compatibility | Type 1+ | |
| Replacement terminal block | 1769-RTBN18 (1 per kit) | |
| Replacement door label | 1769-RL1 (2 per kit) | |
| Replacement door | 1769-RD (2 per kit) | |
| Vendor ID code | 1 | |
| Product type code | 7 | |
| Product code | 67 | |
| Enclosure type rating | None (open-style) | |
